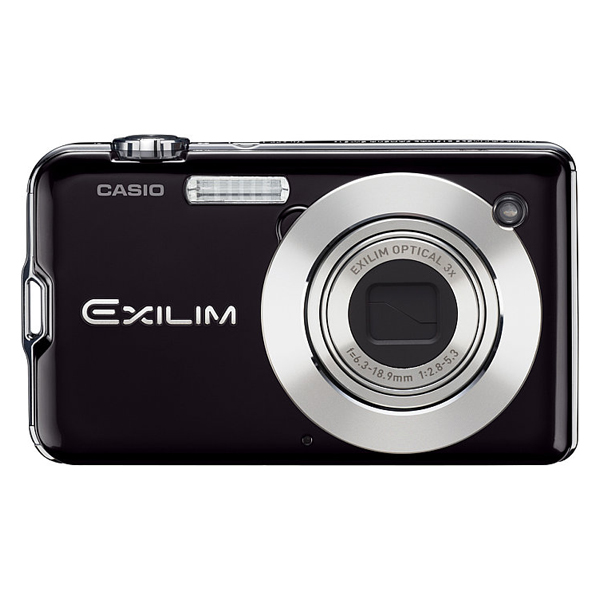

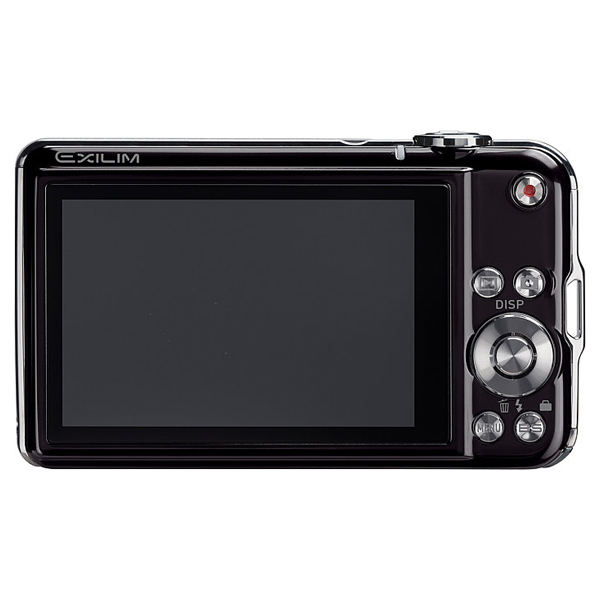

Casio Exilim EX-S12
- Dimensions: 95 x 60 x 23 mm
- Battery: Rechargeable lithium ion battery
- Weight: 111 g
Casio Exilim EX-S12 Full Specifications
Body
| Body type | Compact |
Sensor
| Max resolution | 4000 x 3000 |
| Other resolutions | 4000 x 2656, 4000 x 2240, 3264 x 2448, 2560 x 1920, 2048 x 1536, 640 x 480 |
| Image ratio w:h | 4:3, 3:2, 16:9 |
| Effective pixels | 12 megapixels |
| Sensor photo detectors | 12 megapixels |
| Sensor size | 1/2.3" (6.17 x 4.55 mm) |
| Sensor type | CCD |
| ISO | Auto, 100, 200, 400, 800, 1600 |
| Image stabilization | No |
| Uncompressed format | No |
Optics & Focus
| Focal length (equiv.) | 36–108 mm |
| Optical zoom | 3x |
| Maximum aperture | F2.8–7.9 |
| Autofocus | Contrast Detect (sensor) Single Live View |
| Digital zoom | Yes (4x) |
| Manual focus | Yes |
Screen / viewfinder
| Articulated LCD | Fixed |
| Screen size | 2.7″ |
| Screen dots | 230,160 |
| Touch screen | No |
| Live view | No |
| Viewfinder type | None |
Photography features
| Minimum shutter speed | 1/2 sec |
| Maximum shutter speed | 1/2000 sec |
| Aperture priority | No |
| Shutter priority | No |
| Manual exposure mode | No |
| Subject / scene modes | Yes |
| Built-in flash | Yes |
| External flash | No |
| Self-timer | Yes (10 seconds, 2 seconds, Triple Self-timer) |
| Metering modes | Multi Center-weighted Spot |
| Exposure compensation | ±2 (at 1/3 EV steps) |
Videography features
| Resolutions | 1280 x 720 (24 fps), 640 x 480 (30 fps), 320 x 240 (15 fps) |
| Format | Motion JPEG |
| Microphone | Mono |
Storage
| Storage types | SD/ SDHC memory card, Internal |
| Storage included | 35.2 MB Internal |
Connectivity
| USB | USB 2.0 (480 Mbit/sec) |
| HDMI | Yes |
| Wireless | Eye-Fi Connected |
| Remote control | No |
Physical
| Battery | Battery Pack |
| Battery description | Rechargeable lithium ion battery (NP-60) |
| Weight (inc. batteries) | 111 g (0.24 lb / 3.92 oz) |
| Dimensions | 95 x 60 x 23 mm (3.74 x 2.36 x 0.91″) |
Recommended Computer System Requirements for Movie Playback
| Windows | OS: Windows Vista™/Windows ® XP/Windows ® 2000 CPU: Pentium 4 3.2GHz or higher Required Software: Windows Media Player/Direct X 9.0c or higher |
| Macintosh | OS: Mac OS 10.3.9 or higher Required Software: QuickTime 7 |
EX-S12 Complete Specifications
| Number of Effective Pixels | Approximately 12.1 megapixels |
| Image Sensor | 1/2.3-inch square pixel CCD Total pixels：12.39 million |
| File Format | Still Images：JPEG (Exif Version 2.2, DCF 1.0 standard, DPOF compliant) Movies：AVI format, Motion JPEG, IMA-ADPCM (monaural) Audio (Voice Recording)：WAV (monaural) |
| Built-in Flash Memory (Image Area) | 35.2MB |
| Recording Media | SDHC Memory Card, SD Memory Card, Eye-Fi Wireless Card compatible |
| Number of Recorded Pixels | Still Images：12M(4,000 x 3,000), 3:2(4,000 x 2,656), 16:9(4,000 x 2,240), 8M(3,264 x 2,448), 5M(2,560 x 1,920), 3M(2,048 x 1,536), VGA(640 x 480) STD/LP Movies：640 x 480(30 fts)/320 x 240(15 fts) HD Movies：1280 x 720 (24fps) |
| Recording Capacity (Maximum Size) | Still Images(JPEG)：SD Memory Card 1GB*：Approx. 122 shots (Fine) / 234 shots (Normal) / 350 shots (Economy) Movies：Recording Time：Maximum Recording Time per File: 10 min SD Memory Card 1GB*：Approx. 5 min. 27 seconds (HD) *. When using Panasonic Pro High Speed 1GB SD Memory Card. |
| Operating Speed | High-speed Continuous Shutter：Approx. 10 frames per second at 1280 x 960 pixels Flash Continuous Shutter：Approx. 3 frames per second at 1600 x 1200 pixels |
| Lens | Construction：6 lenses in 5 groups, including aspherical lens F-number：F2.8 (W) to F5.3 (T) Focal Length：f = 6.3 ～ 18.9mm 35mm Film Equivalent：Approx. 36 ～ 108mm |
| Zoom Ratio | Optical Zoom：3X Digital Zoom：4X (12X in combination with optical zoom) |
| Focusing | Focus Type：Contrast Detection Auto Focus Focus Modes：Auto Focus, Macro Mode, Pan Focus, Infinity Mode, Manual Focus AF Area：Spot, Multi or TrackingAF AF Assist Lamp：Yes |
| Focus Range (From Lens Surface) | Auto Focus：Approx. 40cm to infinity (W) Macro：Approx. 10cm to 50cm (W) Infinity Mode：Infinity(W) Manual Focus：Approx. 10cm to infinity (W) *. Range is affected by optical zoom. |
| Exposure | Exposure Metering：Multi-pattern, center weighted, spot by imaging element Exposure Control：Program AE Exposure Compensation：-2EV to +2EV (in 1/3EV steps) |
| Shutter Type | CCD electronic shutter and mechanical shutter Shutter Speed*：Auto：1/2 to 1/2000 second Night Scene(BEST SHOT)：4 to 1/2000 second *. May differ according to camera settings. |
| Aperture | F2.8 (W) to F7.9 (W) *1. Aperture changed by optical zoom or recording mode. *2. F7.9 is the aperture when an ND filter is being used. |
| White Balance | Auto WB, Daylight, Overcast, Shade, Day White FL, Daylight FL, Tungsten, Manual WB |
| ISO Sensitivity | (SOS/REI)*：Still Images：Auto, ISO64, ISO100, ISO200, ISO400, ISO800, ISO1600, ISO3200 Movies：Auto *. SOS: Standard Output Sensitivity. REI: Recommended Exposure Index. |
| Other Recording Functions | Image Stabilization Mechanism：No Make-up Shot：Yes Lighting：Yes Handheld Night Scene：No BEST SHOT：Yes：41 scenes Dynamic Photo：Yes Multi-motion Image*：Yes Prerecord Movie：Yes YouTube™ Capture Mode：Yes AUTO BEST SHOT：Yes Voice Recording：Yes Face Detection：Yes Auto Shutter：Yes *. Image size 2048 x 1536 pixels. |
| Self-timer | 10 seconds, 2 seconds, Triple Self-timer |
| Built-in Flash | Flash Modes：Auto, Flash Off, Flash On, Soft Flash, Red Eye Reduction |
| Monitor Screen | 2.7-inch wide TFT color LCD (Super Clear LCD), 230,160 dots (959 x 240) |
| Timekeeping Functions | Date and Time：Recorded with image data On-image Time Stamp Function：Yes Auto Calendar：To 2049 World Time：162 cities in 32 time zones, city name, date, time, summer time |
| External Connection Terminals | USB/AV port USB：Hi-Speed USB |
| Microphone | Monaural |
| Speaker | Monaural |
| Power Requirements | Rechargeable lithium ion battery (NP-60) x 1 |
| Battery Life | Number of Shots(CIPA* Standards)：Approx. 270 Continuous Playback (Snapshots)：Approx 3 hr. 10 min. Continuous Recording：Approx. 2 hr. (movie recording), Approx. 6hours 40 minutes. (voice recording) |
| Dimensions | 94.2 (W) x 54.6 (H) x 14.9 (D)mm Thinnest part：13.8mm |
| Weight | Approx. 112g(Excluding Battery and Accessories) |
| Bundled Accessories | Rechargeable lithium ion battery, lithium ion battery charger, AC power cord, USB cable, AV cable, strap, CD-ROM |
