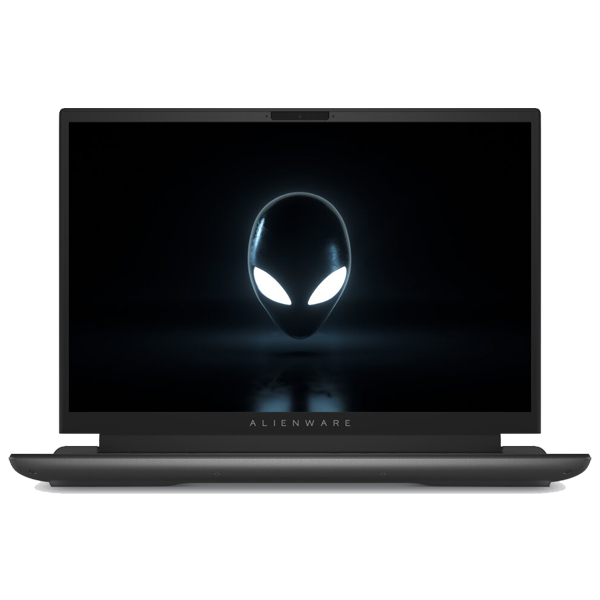

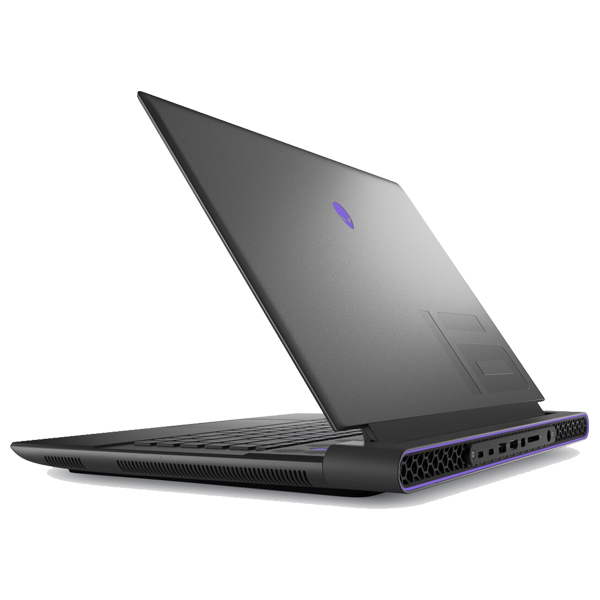

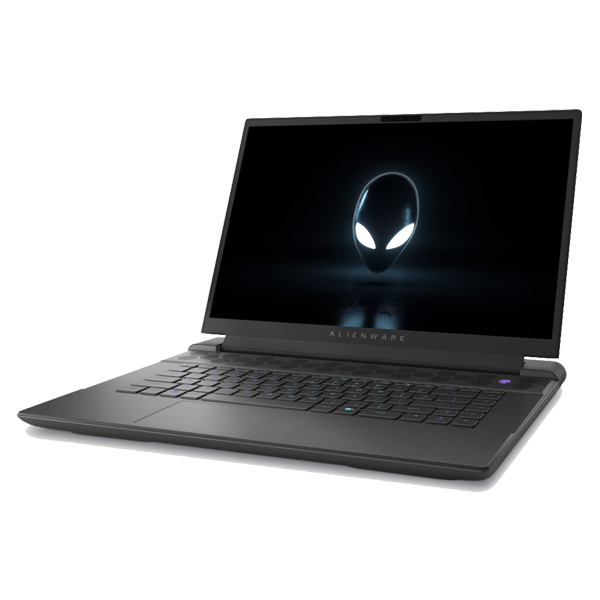

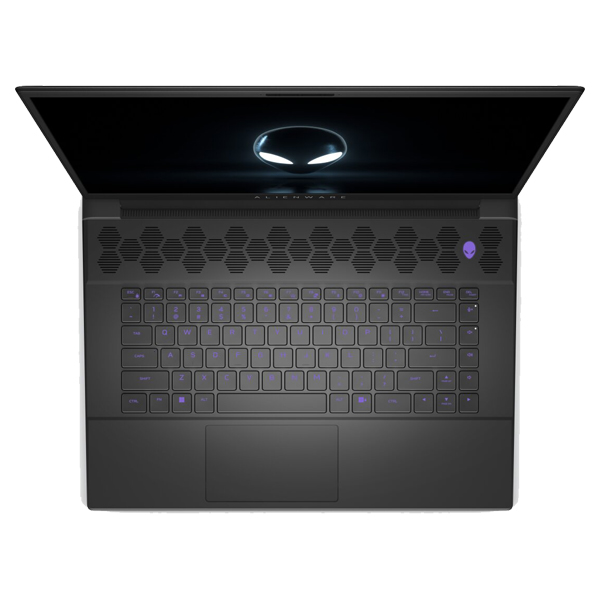

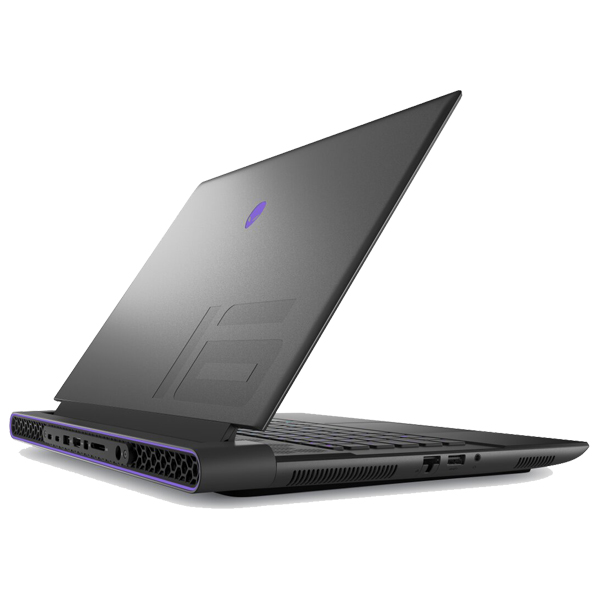

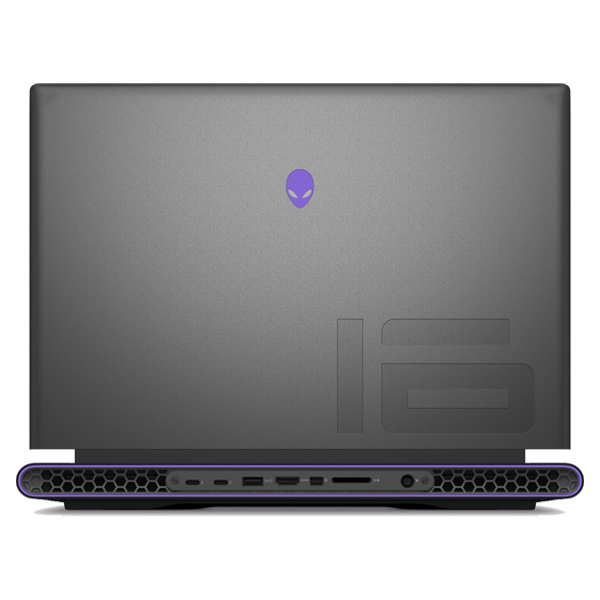

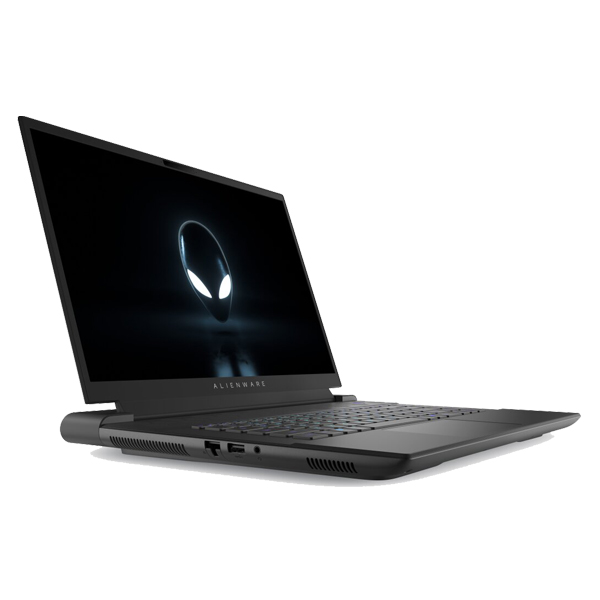

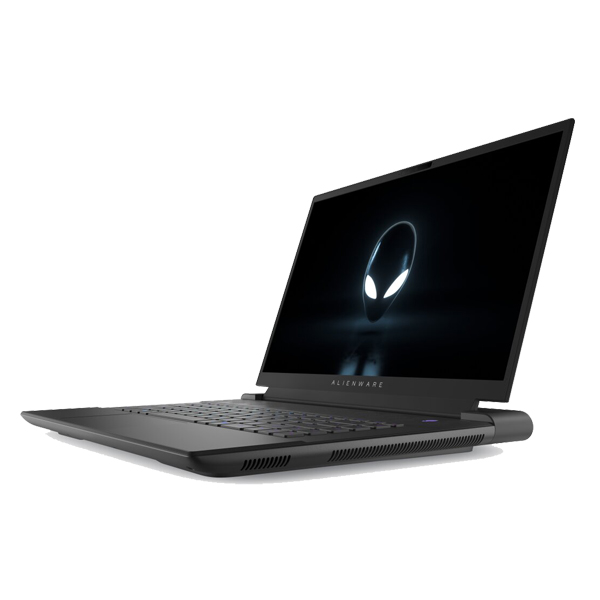

Alienware M16 R1 i7-13700HX Full Specifications
Design
| Product colour | Black |
| Product type | Laptop |
| Form factor | Clamshell |
| Market positioning | Gaming |
Display
| Display diagonal | 16 inch |
| Maximum refresh rate | 165 Hz |
| Display response rise/fall | 7 ms |
| Pixel density | 188.7 ppi |
| Contrast ratio (typical) | 1000:1 |
| Display brightness | 300 cd/m² |
| Panel type | WVA |
| HD type | Quad HD+ |
| LED backlight | Yes |
| Touchscreen | No |
| Display resolution | 2560 x 1600 pixels |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Native aspect ratio | 16:10 |
| Brand | Alienware |
| Model name | 16 |
| Part Number | RF37J |
| Release Date | 07 August 2023 |
| EAN/UPC code | 0884116458388, 884116458388 |
Processor
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Motherboard chipset | Intel HM770 |
| Processor boost frequency | 5 GHz |
| Processor model | i7-13700HX |
| Processor cores | 16 |
| Processor cache | 30 MB |
| Processor generation | 13th gen Intel Core i7 |
| Performance-core base frequency | 5 GHz |
| Efficient-core boost frequency | 3.7 GHz |
Memory
| Internal memory type | DDR5-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 4800 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 64 GB |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory channels | Dual-channel |
Graphics
| Discrete graphics memory type | GDDR6 |
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce RTX 4060 |
| On-board graphics card model | Intel UHD Graphics |
| Discrete graphics card memory | 8 GB |
Storage
| Total storage capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| Total SSDs capacity | 1 TB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| Compatible memory cards | SD, SDHC, SDXC |
| Card reader integrated | Yes |
| Storage media | SSD |
| NVMe | Yes |
Networking
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 100, 1000, 2500 Mbit/s |
| WLAN controller model | Killer Wi-Fi 6E AX167 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
Ports & Interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| PowerShare | Yes |
| Charging port type | DC-in jack |
| HDMI version | 2.1 |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Mini DisplayPorts quantity | 1 |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Power adapter barrel connector | 7.4 mm |
Audio
| Built-in microphone | Yws |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Audio chip | Realtek ALC3254 |
| Number of microphones | 2 |
Camera
| Front camera | Yes |
| Front camera HD type | Full HD |
| Video capturing speed | 30 fps |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera resolution (numeric) | 2.07 MP |
Keyboard
| Numeric keypad | No |
| Keyboard backlit colour | RGB |
| Keyboard backlit | Yes |
| Pointing device | Touchpad |
| Keyboard language | Spanish |
Software
| Operating system installed | Windows 11 Home |
| Operating system language | English, Spanish, French |
| Operating system architecture | 64-bit |
Battery
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery weight | 340 g |
| Battery recharge time | 3 h |
| Number of battery cells | 6 |
| Battery capacity | 86 Wh |
| Battery voltage | 11.4 V |
| Fast charging | Yes |
Weight & Dimensions
| Weight | 3.3 kg |
| Height (rear) | 2.3 cm |
| Height (front) | 2.31 cm |
| Depth | 289.9 mm |
| Width | 368.9 mm |
Power
| AC adapter power | 330 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19.5 V |
| AC adapter output current | 16.92 A |
