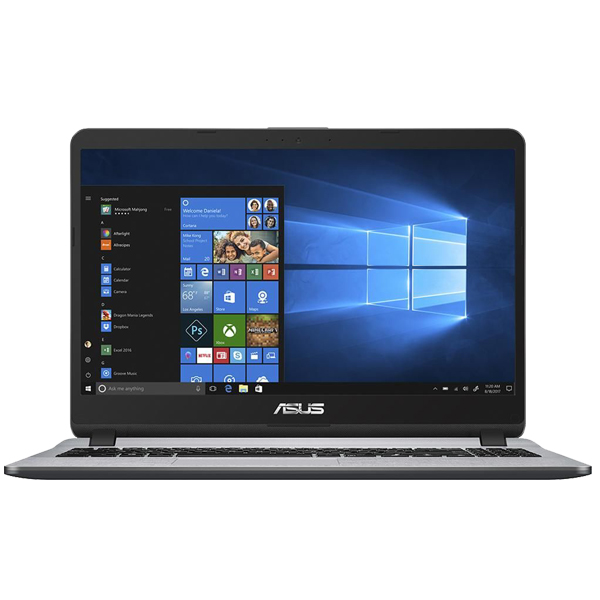

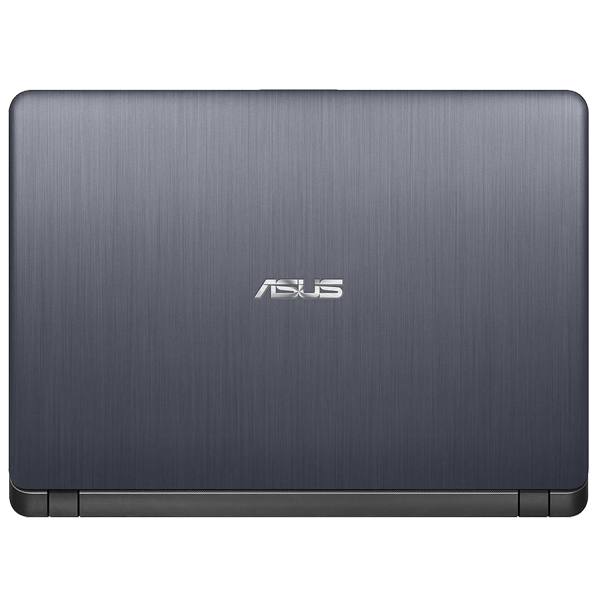

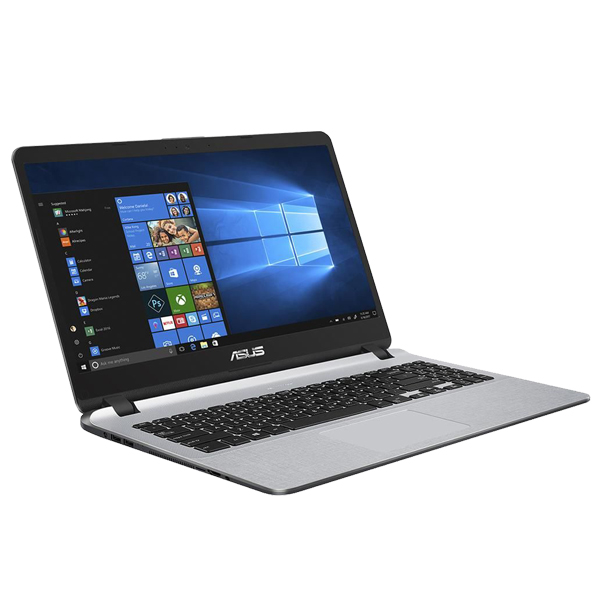

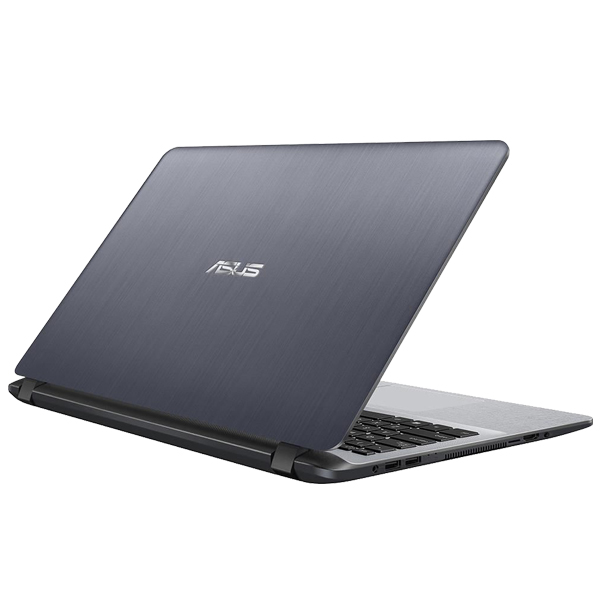

ASUS 507UB-EJ296T - X507UB-EJ296T Full Specifications
Design
| Product colour | Grey |
| Product type | Notebook |
| Form factor | Clamshell |
Display
| Display diagonal | 15.6 inch |
| Display surface | Matt |
| Aspect ratio | 16:9 |
| HD type | Full HD |
| LED backlight | Yes |
| Touchscreen | No |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Brand | ASUS |
| Model name | 507UB-EJ296T |
| Part Number | X507UB-EJ296T |
| Release Date | 2019 February |
Processor
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor frequency | 1.8 GHz |
| Processor boost frequency | 4 GHz |
| Processor codename | Kaby Lake R |
| Thermal Design Power (TDP) | 15 W |
| Processor model | i7-8550U |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor cache | 8 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1356 |
| Configurable TDP-up frequency | 2 GHz |
| Configurable TDP-up | 25 W |
| Processor generation | 8th gen Intel Core i7 |
Memory
| Internal memory type | DDR4-SDRAM |
| Internal memory | 8 GB |
| Memory clock speed | 2400 MHz |
Graphics
| On-board graphics adapter | Yes |
| On-board graphics adapter DirectX version | 12.0 |
| Discrete graphics adapter | Yes |
| On-board graphics adapter model | Intel UHD Graphics 620 |
| Discrete graphics adapter model | NVIDIA GeForce MX110 |
| On-board graphics adapter base frequency | 300 MHz |
| On-board graphics adapter dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics adapter memory | 32 GB |
| On-board graphics adapter OpenGL version | 4.4 |
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce MX110 |
| On-board graphics card model | Intel UHD Graphics 620 |
| On-board graphics card family | Intel UHD Graphics |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x5917 |
Storage
| Total storage capacity | 1 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| Total HDDs capacity | 1 TB |
| Card reader integrated | Yes |
| Storage media | HDD |
Ports & Interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity | 1 |
| Microphone in | No |
| ExpressCard slot | No |
| SmartCard slot | No |
| Combo headphone/mic port | Yes |
| USB 2.0 ports quantity | 2 |
| HDMI ports quantity | |
Audio
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Audio system | SonicMaster |
| Speaker power | 2W |
Keyboard
| Numeric keypad | Yes |
| Full-size keyboard | Yes |
| Windows keys | Yes |
| Pointing device | Touchpad |
Software
| Operating system installed | Windows 10 Home |
Battery
| Number of battery cells | 3 |
| Battery capacity | 33 Wh |
| Battery capacity (Watt hours) | 33 Wh |
Weight & Dimensions
| Weight | 1.68 kg |
| Height | 21.9 mm |
| Depth | 266 mm |
| Width | 365 mm |
Power
| AC adapter power | 65 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19 V |
| AC adapter output current | 3.42 A |
Security
| Cable lock slot | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | BIOS, HDD, User |
