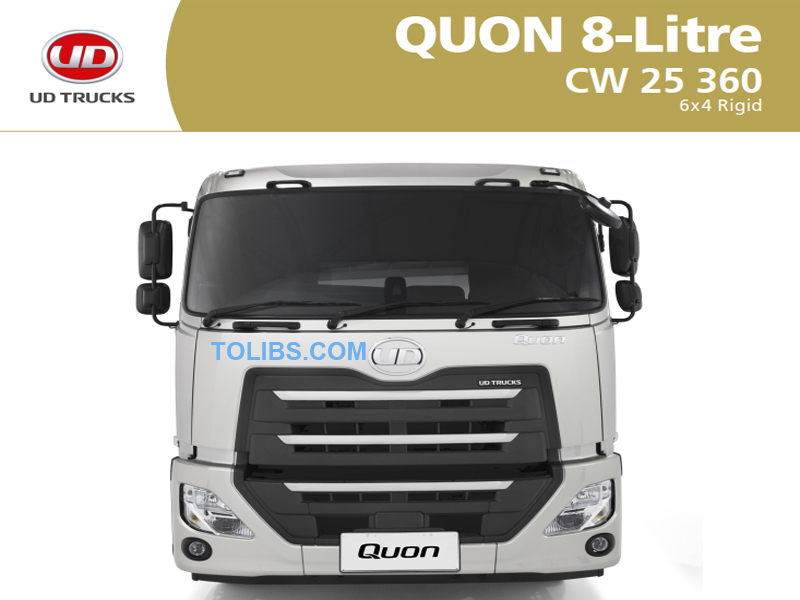

UD Truck Quon 8-Litre CW 25 360 Specifications

For the latest and most accurate information about UD Trucks QUON 8-Litre, including any updates or new releases that may have occurred after my last update in January 2022, I recommend checking UD Trucks' official website, contacting their customer support, or referring to official publications related to commercial vehicles and the trucking industry.

SPECIFICATIONS

• Power: 263 kW (357 PS) @ 2200 rpm
• Torque: 1428 Nm (1055 lb.ft) @ 1200 rpm
• Transmission: ESCOT-VI automated manual transmission (AMT)
• Suspension: Air bag suspension
• Wheelbase: 3700 mm (L-wheelbase) or 5700 mm*(V-wheelbase)
• GVM: 25,000 kg
• GCM: 25,000 kg

QUON UNIQUE FEATURES
SMARTFUEL EFFICIENCY AND RESPECT FOR THE ENVIRONMENT
GH8 engine: fuel efficient, powerful and clean.

SMARTUPTIME
Quon has been designed to further optimise uptime, with superior reliability and increased maintenance intervals.

SMARTSAFETY
Active safety with mechanical and electronic features throughout.Electronic Stability Control (ESC) included.

SMARTPRODUCTIVITY
Light weight chassis helping to maximise payload.

SMARTDRIVABILITY
The cabin has been designed with the user's comfort in mind,with outstanding ergonomics and visibility allowing the driverto concentrate on driving.

MECHANICAL SPECIFICATION
ENGINE MODEL

• Model: GH8TA
• Layout: 6 in-line
• Maximum power: 263 kW (357 PS) @ 2200 rpm
• Maximum torque: 1428 Nm (1055 lb.ft) @ 1200 rpm
• Bore X stroke: 110 mm x 135 mm
• Displacement: 7697 cc (8 litres)
• Emission standard: pPNLT (Equivalent to Euro 6 emission requirements)
• PTO Capacity: 600 Nm @ 100% (PTER-DIN)

TRANSMISSION

• Make: UD Trucks
• Model: ESCOT-VI  (AT2612F)
• Description: Automated manual transmission (AMT) 12 forward & 2 reverse gears
• Shift type: Electronic shifter with fully automatic or manual control
• Gear Ratios:
  • 1: 14.94
  • 2: 11.73
  • 3: 9.04
  • 4: 7.09
  • 5: 5.54
  • 6: 4.35
  • Rev 1: 17.48
  • 7: 3.44
  • 8: 2.70
  • 9: 2.08
  • 10: 1.63
  • 11: 1.27
  • 12: 1.00
  • Rev 2: 13.73
• PTO capacity: 1000 Nm @ 70% or 90% (PTR-D)

BRAKES

• System type: Electronic Braking System (EBS) with disc brakes
• Front/Rear: 430 mm rotors / 430 mm rotors
• Parking/Emergency Brake: Spring park brake
• Auxiliary Brake: Engine brake including exhaust pressure governor

STEERING

• Type: Hydraulic assist

CLUTCH

• Type: Single plate
• Disc diameter: 430 mm (17")

AXLE AND LOAD

• Model (rear): RTS2370A
• Front axle load limit: 8200 kg
• Rear axle load limit: 21000 kg
• Final gear ratio: 3.40, 3.78 or 4.13
• Reduction type: Single reduction

SUSPENSION

• Front: Parabolic leaf spring suspension
• Rear: UD Trucks electronically controlled 8 bag air suspension
• Road Friendly Certificate: RF2099

TYRE

• Tyre brand: Bridgestone
• Standard tyre size front: 295/80 R22.5
• Standard tyre size rear: 11 R22.5
• Option front: 275/70 R22.5
• Option rear: 275/70 R22.5

FUEL TANK

• Capacity: 400 litres

WARRANTY

• Standard warranty: 36 months / 500,000 kms
• Cab corrosion warranty: 36 months / unlimited kms
• Extended warranty: 60 months / 500,000 kms

FACTORY OPTIONAL EQUIPMENT

• Type: Differential cross locks



For details refer to your UD Trucks New Vehicle Warranty brochure. Purchased by the owner and covers selected factory items only. For details refer to your UD Trucks New Vehicle Warranty brochure.

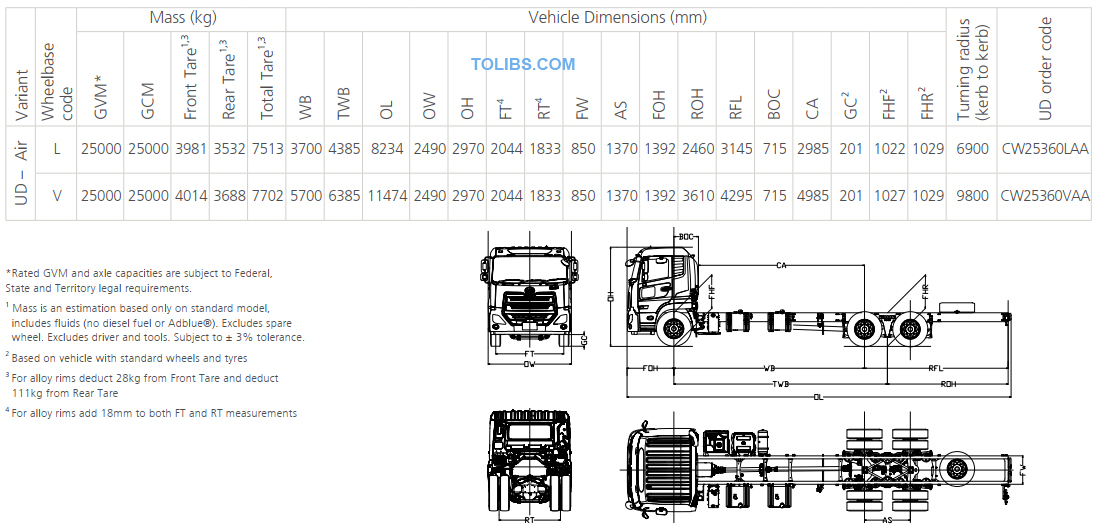

MAJOR DIMENSIONS

DISCLAIMER: Imported and distributed by Volvo Group Australia Pty Ltd (ABN: 27 000 761 259). Photos for illustration purposes.Volvo Group Australia Pty Ltd reserves the right to modify design and change equipment without previous notification. Please consult with your UD Trucks Dealer for the latest information about vehicle specifications.
