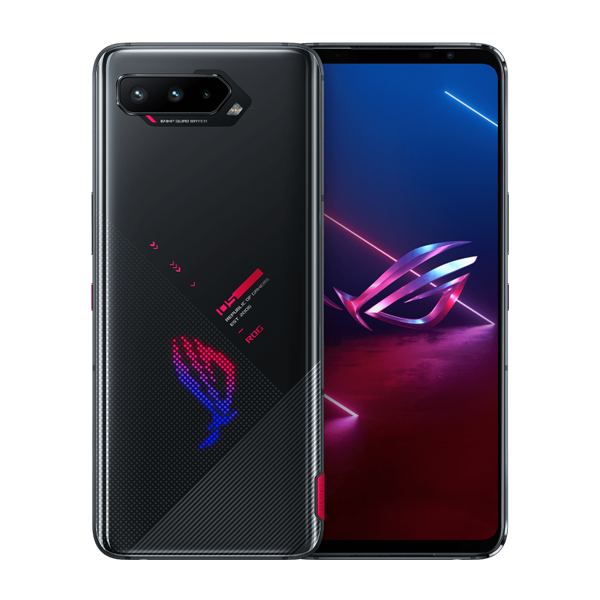

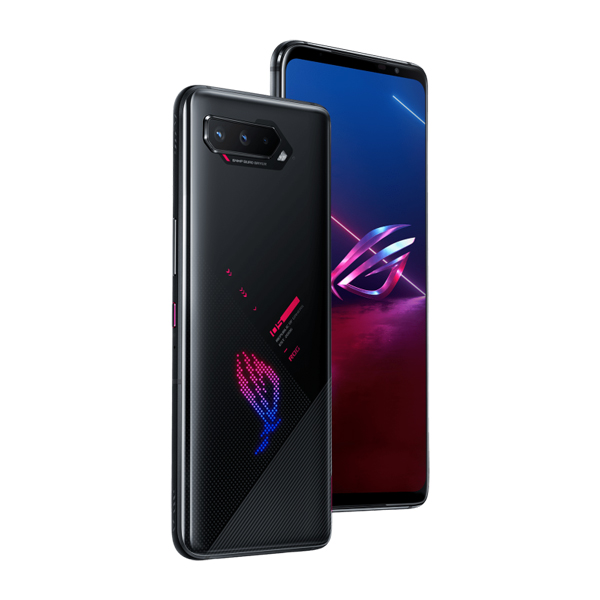

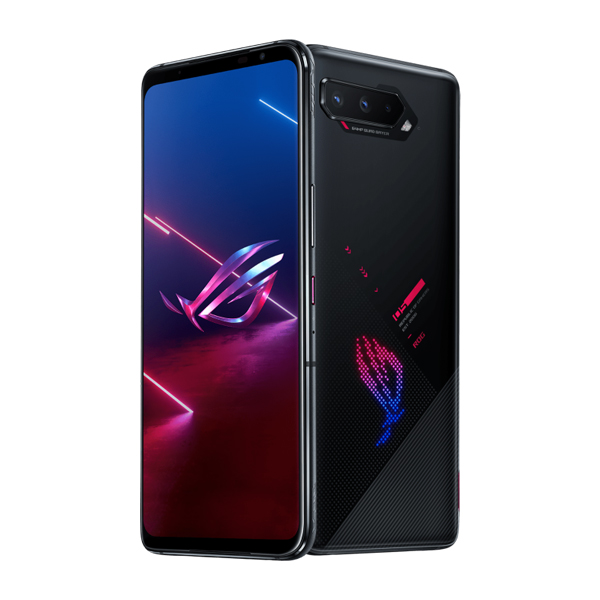

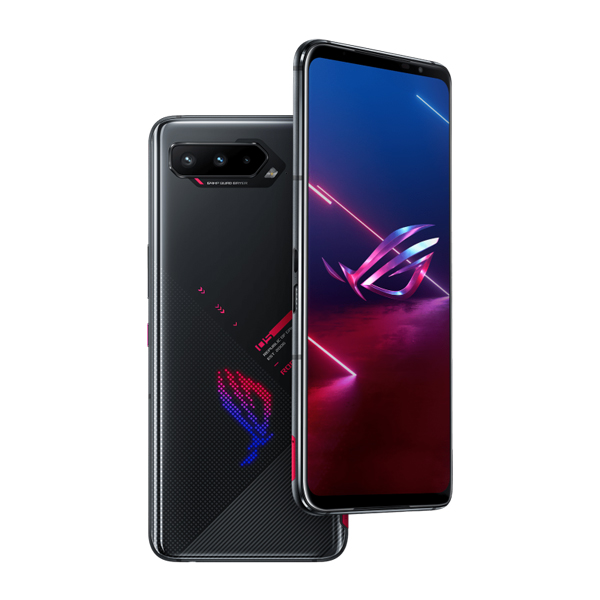

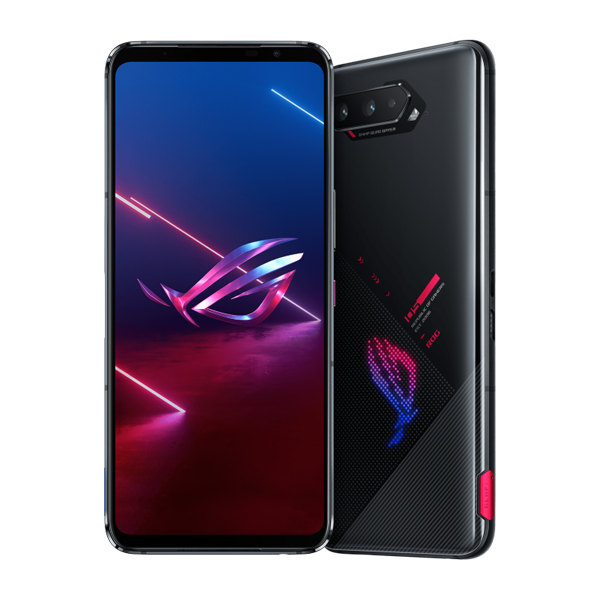

Asus ROG Phone 5s
Asus ROG Phone 5s Full Specifications
General
| Device Type | Smart Phone |
| Model | ZS676KS |
| Announced | 2021, August |
| Released | Released 2021, August |
Network
| Technology | GSM / HSPA / LTE / 5G |
| 2Bands | GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2 |
| 3Bands | HSDPA 800 / 850 / 900 / 1700(AWS) / 1800 / 1900 / 2100 - Version 1 HSDPA 850 / 900 / 1800 / 1900 / 2100 / 1700 - Version 2, Version 3 |
| 4Bands | 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 29, 30, 32, 34, 38, 39, 40, 41, 42, 48, 66, 71 - Version 1 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 29, 30, 32, 34, 38, 39, 41, 42, 48, 66, 71 - Version 2, Version 4 1, 2, 3, 4, 5, 7, 8, 18, 19, 20, 26, 28, 34, 38, 39, 40, 41, 42, 48 - Version 3 |
| 5Bands | 1, 2, 3, 5, 7, 8, 12, 20, 25, 28, 38, 40, 41, 66, 71, 77, 78, 79 SA/NSA - Version 1 1, 2, 3, 5, 7, 8, 12, 20, 25, 28, 38, 41, 66, 71, 77, 78, 79 SA/NSA - Version 2 1, 3, 7, 8, 20, 28, 38, 41, 77, 78, 79 SA/NSA - Version 3 2, 3, 5, 7, 12, 20, 25, 28, 38, 40, 66, 71, 77, 78, 79 SA/NSA - Version 4 |
| Speed | HSPA 42.2/5.76 Mbps, LTE (7CA) Cat20 1400/150 Mbps, 5G 4 Gbps DL |
Design
| Dimensions | 172.8 x 77.3 x 9.9 mm (6.80 x 3.04 x 0.39 in) |
| Weight | 238 g (8.40 oz) |
| BUILD | Glass front (Gorilla Glass Victus), glass back (Gorilla Glass 3), aluminum frame |
| SIM | Dual SIM (Nano-SIM, dual stand-by) RGB light panel (on the back) Pressure sensitive zones (Gaming triggers) |
Display
| Type | AMOLED, 1B colors, 144Hz, HDR10+, 800 nits (typ), 1200 nits (peak) |
| Size | 6.78 inches, 109.5 cm2 (~82.0% screen-to-body ratio) |
| Resolution | 1080 x 2448 pixels (~395 ppi density) |
| Protection | Corning Gorilla Glass Victus |
Platform
| OS | Android 11, upgradable to Android 12, ROG UI |
| Chipset | Qualcomm SM8350 Snapdragon 888+ 5G (5 nm) |
| CPU | Octa-core (1x2.99 GHz Cortex-X1 & 3x2.42 GHz Cortex-A78 & 4x1.80 GHz Cortex-A55) |
| GPU | Adreno 660 |
Media
| Loudspeaker | Yes, with stereo speakers (2 amplifiers) |
| 3.5mm jack | Yes, 24-bit/192kHz Hi-Res audio |
Main Camera
| Triple | 64 MP, f/1.8, 26mm (wide), 1/1.73", 0.8µm, PDAF 13 MP, f/2.4, 11mm, 125˚ (ultrawide) 5 MP, f/2.0, (macro) |
| Features | LED flash, HDR, panorama |
| Video | 8K@30fps, 4K@30/60/120fps, 1080p@30/60/120/240fps, 720p@480fps; gyro-EIS |
Selfie Camera
| Single | 24 MP, f/2.5, 27mm (wide), 0.9µm |
| Features | Panorama, HDR |
| Video | 1080p@30fps |
Memory
| Card Slot | No |
| Internal | 128GB 8GB RAM, 128GB 12GB RAM, 256GB 12GB RAM, 256GB 16GB RAM, 512GB 16GB RAM, 512GB 18GB RAM UFS 3.1 |
Connectivity
| WLAN | Wi-Fi 802.11 a/b/g/n/ac/6e, dual-band, Wi-Fi Direct |
| Bluetooth | 5.2, A2DP, LE, aptX HD, aptX Adaptive |
| Positioning | GPS (L1+L5), GLONASS (L1), BDS (B1I+B1c+B2a), GALILEO (E1+E5a), QZSS (L1+L5), NavIC (L5) |
| NFC | Yes |
| USB | USB Type-C 3.1 (side), USB Type-C 2.0 (bottom), OTG, accessory connector |
Features
| Sensors | Fingerprint (under display, optical), accelerometer, gyro, proximity, compass |
Battery
| Type | Li-Po 6000 mAh, non-removable |
| Charging | 65W wired, PD3.0, QC5, 70% in 30 min, 100% in 52 min (advertised) 10W reverse wired |
Other

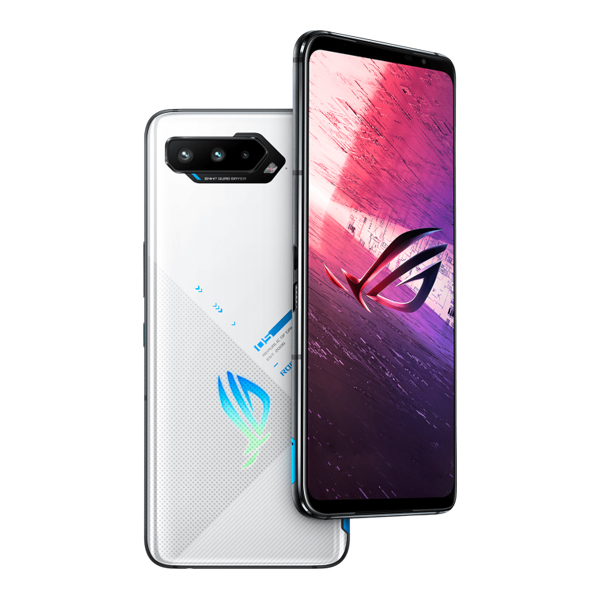

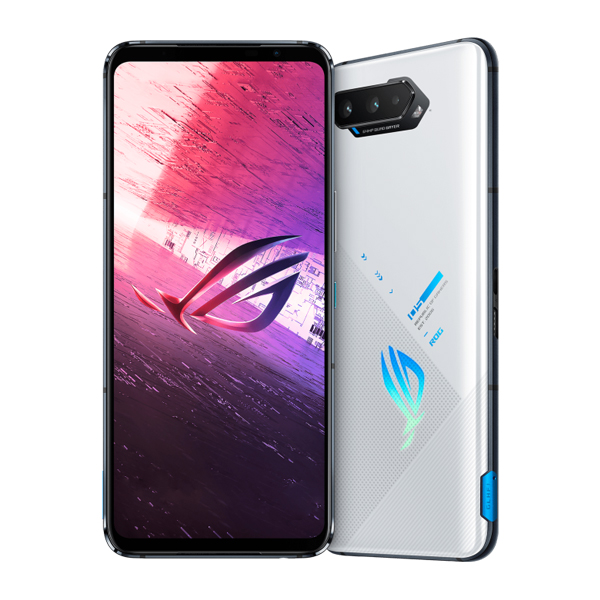

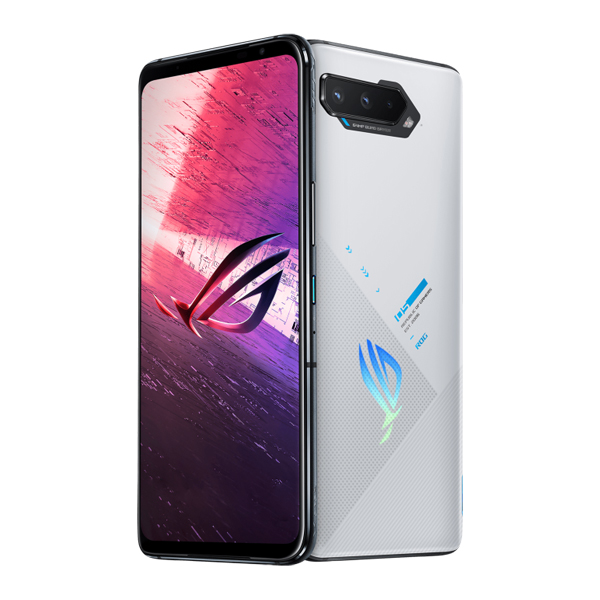

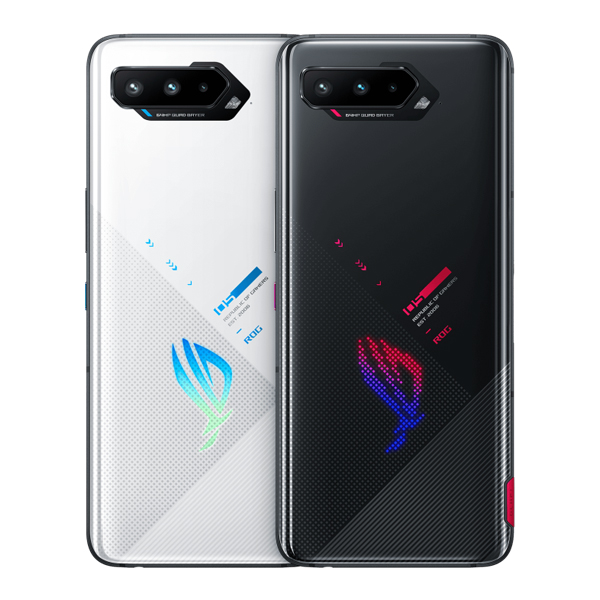

| Colors | Phantom Black, Storm White |
| Price | About 1030 EUR |
