250 SX-F XC-F KTM Workshop Repair Manual

The Owner's Manual contained the latest information for this model series at the time of going to print. Slight deviations resulting from continuing development and design of the motorcycles can, however, not be completely excluded.

All specifications are non-binding. KTM Sportmotorcycle AG specifically reserves the right to modify or delete technical specifications, prices, colors, forms, materials, services, designs, equipment, etc., without prior notice and without specifying reasons, to adapt these to local conditions, as well as to stop production of a particular model without prior notice. KTM accepts no liability for delivery options, deviations from illustrations and descriptions, as well as misprints and other errors. The models portrayed partly contain special equipment that does not belong to the regular scope of supply.

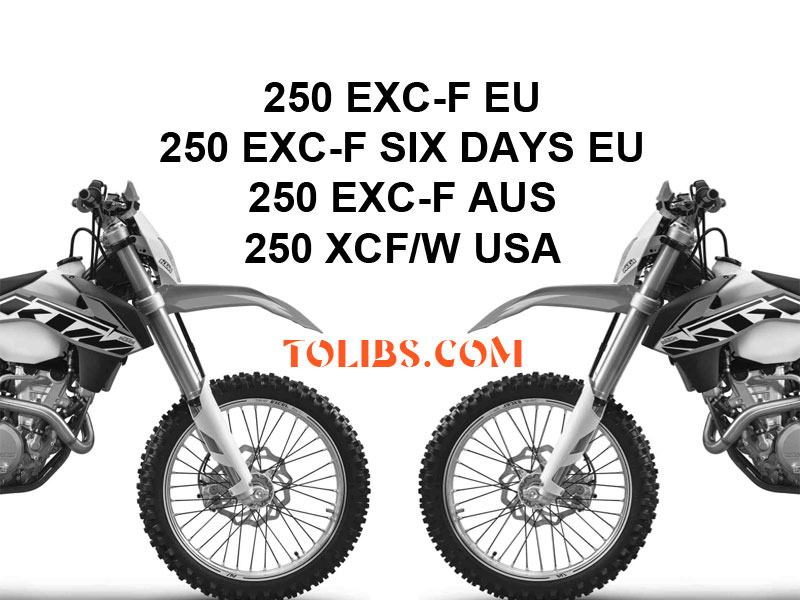

This Guide support repair for KTM 250 Model:

• 250 EXC-F EU
• 250 EXC-F SIX DAYS EU
• 250 EXC-F AUS
• 250 XCF-W USA

KTM 250 SX-F XC-F Owner's Manual
It is important that you read this Owner's Manual carefully and completely before making your first trip. The Owner's Manual contains useful information and many tips on how to operate, handle, and maintain your motorcycle. Only then will you find out how to customize the vehicle ideally for your own use and how you can protect yourself from injury.

Keep the Owner's Manual in an accessible place to enable you to refer to it as needed. If you would like to know more about the vehicle or have questions on the material you read, please contact an authorized KTM dealer. The Owner's Manual is an important component of the vehicle and should be handed over to the new owner if the vehicle is sold.

Guarantee, warranty KTM 250 SX-F XC-F
The work prescribed in the service schedule must be carried out by an authorized KTM workshop only and confirmed in the customer's Service & Warranty Booklet and in the KTM dealer.net; otherwise, all warranty claims will be void. No warranty claims can be considered for damage resulting from manipulations and/or alterations to the vehicle. Additional information on the guarantee or warranty and the procedures involved can be found in the Service & Warranty Booklet.

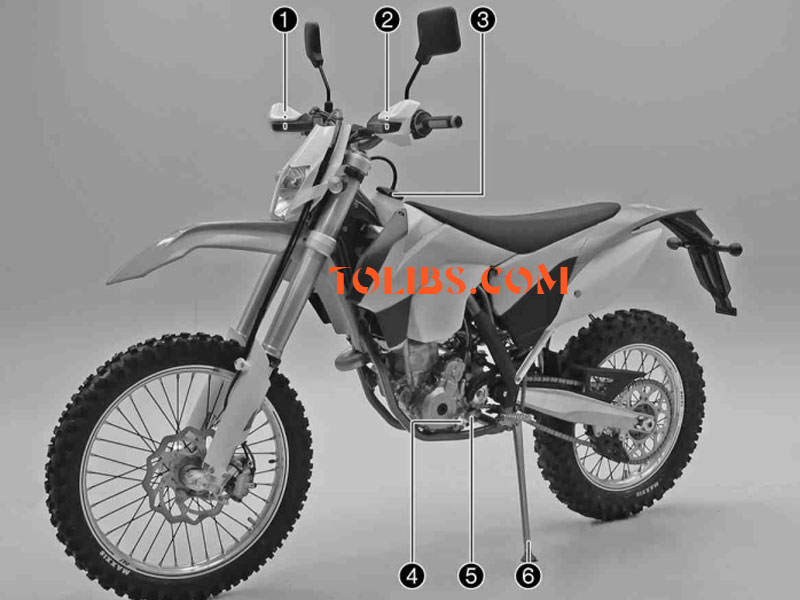

View of vehicle, front left (example)

1. Hand brake lever
2. Clutch lever
3. Filler cap
4. Shift lever
5. Engine number
6. Side stand

KTM 250 SX-F XC-F Spare parts and accessories
For your own safety, only use spare parts and accessory products that are approved and/or recommended by KTM and have them installed by an authorized KTM workshop. KTM accepts no liability for other products and any resulting damage or loss. Certain spare parts and accessory products are specified in parentheses in the descriptions. Your authorized KTM dealer will be glad to advise you.

Service for KTM 250 SX-F XC-F
A prerequisite for perfect operation and prevention of premature wear is that the service, care, and tuning work on the engine and chassis is properly carried out as described in the Owner's Manual. Incorrect adjustment and tuning of the engine and chassis can lead to damage and breakage of components.

Use of the vehicle under difficult conditions, such as on sand or on wet and muddy surfaces, can lead to considerably more rapid wear of components such as the drive train, brake system, or suspension components. For this reason, it may be necessary to inspect or replace parts before the next scheduled service. It is imperative that you adhere to the stipulated run-in times and service intervals. If you observe these exactly, you will ensure a much longer service life for your motorcycle.

Clutch lever
The clutch lever is fitted on the left side of the handlebar. The clutch is hydraulically operated and self-adjusting.
Hand brake lever
Hand brake lever is located on the right side of the handlebar. The hand brake lever is used to activate the front brake.
Throttle grip
The throttle grip is fitted on the right side of the handlebar.
Off switch (All EXC-F models)
Off switch is fitted on the left side of the handlebar.
Possible states

• Off switch in basic position – the ignition circuit is closed in this position and the engine can be started.
• Off switch pressed – the ignition circuit is open in this position, the engine goes out if it was running, or does not start if it was off.

Off switch (XCF-W)
Off switch is fitted on the left side of the handlebar.
Possible states

• Off switch in basic position – the ignition circuit is closed in this position and the engine can be started.
• Off switch pressed – the ignition circuit is open in this position, the engine goes out if it was running, or does not start if it was off.

Electric starter button (EXC‑F EU, EXC-F SIX DAYS, XCF-W)
The electric starter button 1 is fitted on the right side of the handlebar.
Possible states

• Electric starter button in basic position
• Electric starter button pressed – the electric starter is actuated in this position.
