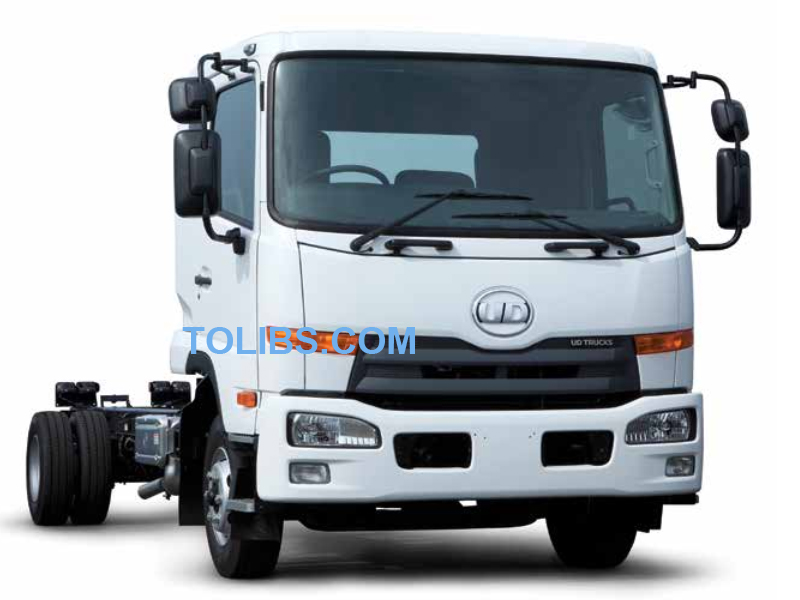

UD Trucks Condor MK 11 280 Technical Specifications

SPECIFICATIONS

• GVM*: 11,000 kg
• GCM: 15,500 kg
• Opt GVM*: 8,000 kg (on application)
• Power: 206 kW @ 2,500 rpm
• Torque: 883 Nm @ 1,400 rpm
• Transmission: UD Trucks 6 speed manual
• Suspension: UD Trucks leaf or Hendrickson airbag

FEATURES

1. ECE-R29 Cab Strength Compliant
2. Drivers SRS airbag and seat belt pretensioner
3. WABCO ABS (Anti-lock Braking System)
4. Easy Hill Start (EHS) - manual models only
5. Rear Engine PTO (REPTO) optional
6. Multi adjustable air suspended driver seat
7. Cruise control
8. Touch screen multimedia with SD, USB, CD, DVD, 3.5mm inputs
9. ADR42 compliant sleeper cab and mattress
10. Heated and electronically operated external mirrors

SAFETY
ECE-R29 Cab strength compliant
SRS drivers air bag with seat belt pretensioner
WABCO ABS (Anti-lock Braking System)
Easy Hill Start (EHS) - manual models only
Electrically operated and heated mirrors
360° visibility with up to 4 optional cameras

ENGINE

• Make: UD Trucks
• Model: GH7TB
• Description: 4 Cycle direct injected turbocharged and intercooled diesel engine. Single overhead camshaft with 4 valves per cylinder.
• Cylinders: 6 in-line
• Total piston displacement: 7,013 cc (11 litres)
• Bore x stroke: 110 mm x 123 mm
• Compression ratio: 17.5:1
• Max. Power: (ECE Net) 206 kW (280 ps) @ 2,500 rpm
• Max. Power: (JIS Gross est.) 214 kW (291 ps) @ 2,500 rpm
• Max. Torque: (ECE Net) 883 Nm (651 lb/ft) @ 1,400 rpm
• Max. Torque: (JIS Gross est.) 917 Nm (676 lb/ft) @ 1,400 rpm
• Max. governed engine speed: 2,600 rpm

Lubrication system:
Forced oil feed by gear pump, flat tube oil cooler, full flow and bi-pass oil filters with replaceable elements and 17 litre capacity

Compressed air system:
Water cooled reciprocating type, single cylinder air compressor with air dryer

Cooling System:
Forced feed by centrifugal water pump, wax pellet type thermostat with bypass. Aluminium corrugated fin type radiator with cab front bonnet mounted reserve tank and a 600mm diameter 11 blade viscous coupling cooling fan.
