Honeywell Home PRO 1000 Series Non-Programmable Thermostat Operating Manual
This manual covers the following models:

1. TH1100DV: For 1 Heat systems
2. TH1110DV: For 1 Heat/1 Cool systems
3. TH1210DV: For 2 Heat/1 Cool heat pump systems

(Pull thermostat from wallplate and turn over to find model number.)

About your new thermostat
Your new Resideo thermostat has been designed to give you many years of reliable service and easy-to-use, push-button climate control.
Features

• Backlit display is easy to read
• Displays ambient (measured) temperature at all times
• One-touch access to setpoint temperature
• Built-in compressor protection

Quick reference to controls
Fan Switch:
On: Fan runs continuously.
Auto: Fan runs only when heating or cooling system is on.

System switch:

• Cool: Cooling system control.
• Off: All systems off.
• Heat: Heating system control.
• Em Heat: Emergency & Auxiliary Heat control. Compressor is locked out. (Select models only.)

Up/Down buttons:
Press to adjust temperature.

Quick reference to display screen
Setpoint indicator: Appears when the setpoint temperature is displayed
Temperature: The ambient (measured) temperature is normally displayed. To view the setpoint temperature, press the Up or Down button once. The setpoint temperature will appear for five seconds.
System status:
Cool on: Cooling system is on.
Heat on: Heating system is on.
Aux On: Auxiliary heat is on. (Only for heat pumps with this capability [select models only].)

When “Heat On” or “Cool On” is flashing, compressor protection is engaged.

Select the system setting:
The SYSTEM switch can be set to control your heating or cooling system, depending on the season.

• Cool: Cooling system control.
• Off: All systems are off.
• Heat: Heating system control.
• Em Heat: Emergency & Auxiliary Heat control. Compressor is locked out. (Select models only.)

Select the fan setting
Set the FAN switch to Auto or On. In “Auto” mode (the most commonly used setting), the fan runs only when the heating or cooling system is on. If set to “On,” the fan runs continuously. Set FAN switch to choose whether the fan runs continuously or only as needed.

Honewywell PRO TH2000DV/TH1000DV Series Installation Guide
System Types
TH2110DV/TH1110DV:

• Gas, oil, or electric heat with air conditioning
• Warm air, hot water, high-efficiency furnaces, 1 Heat/1 Cool heat pumps, steam, gravity
• Heat only
• Heat only with fan
• Cool only
• 750 mV heating systems

TH2210DV/TH1210DV:

• 2 Heat/1 Cool heat pumps

TH1100DV:

• Gas, oil, or electric heat
• Warm air, hot water, steam, gravity
• Heat only
• 750 mV heating systems

Must be installed by a trained, experienced technician Read these instructions carefully. Failure to follow these instructions can damage the product or cause a hazardous condition.

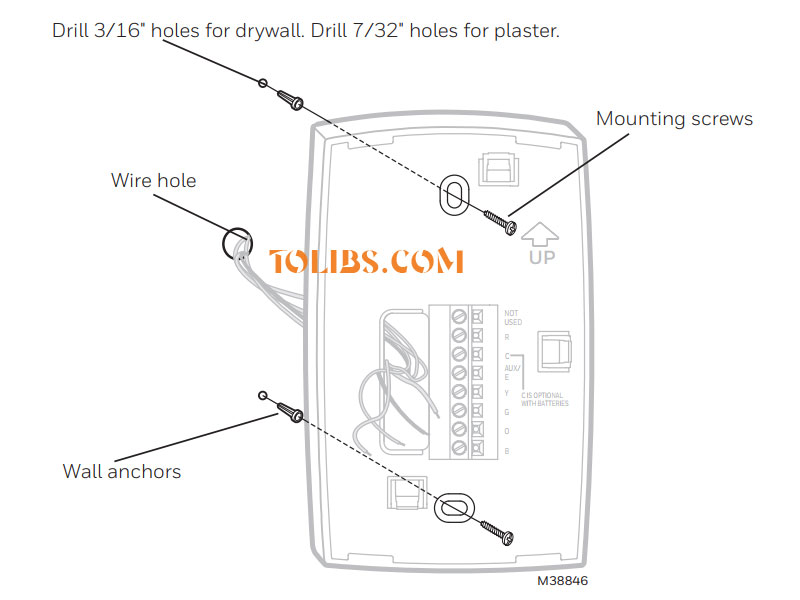

Honeywell PRO 1000 Series Wallplate installation
Pull at bottom to remove thermostat from wallplate.
Remove the wallplate from the thermostat as shown at left, then follow directions below for mounting.

1. Pull wires through wire hole.
2. Position wallplate on wall, level and mark hole positions with pencil.
3. Drill holes at marked positions as shown below, then tap in supplied wall anchors.
4. Place wallplate over anchors, insert and tighten mounting screws.

Honeywell Home PRO 1000 Series Terminal designations

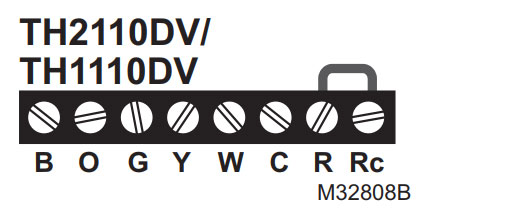

TH2110DV/TH1110DV:
B Changeover valve energized in heating
O Changeover valve energized in cooling
G Fan relay
Y Compressor contactor
W Heat relay
C 24 Vac common. For 2-transformer systems, use common wire from cooling transformer.
R 24 Vac power from heating transformer
Rc 24 Vac power from cooling transformer

TH2210DV/TH1210DV:
B Changeover valve energized in heating
O Changeover valve energized in cooling
G Fan relay
Y Compressor contactor
Aux/E Auxiliary heat relay
C 24 Vac common
R 24 Vac power

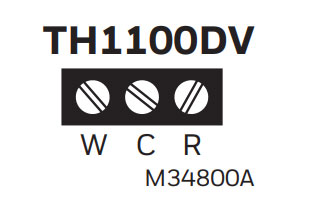

TH1100DV:
W Heat relay
C 24 Vac common
R 24 Vac power

Honeywell PRO 1000 Fan operation settings
TH2110DV/TH1110DV only:

1. Gas or Oil: For gas or oil heating systems, leave the fan operation switch in this factoryset position. (This setting is for systems that control the fan in a call for heat.)
2. Electric or Heat Pump: Change the switch to this setting for heat pump or electric heat systems. (This setting is for systems that allow the thermostat to control the fan in a call for heat, if a fan wire is connected to the G terminal.)

Honeywell PRO 1000 Series Thermostat mounting
Align the thermostat with the tabs on the wallplate, then push gently until the thermostat snaps in place.
