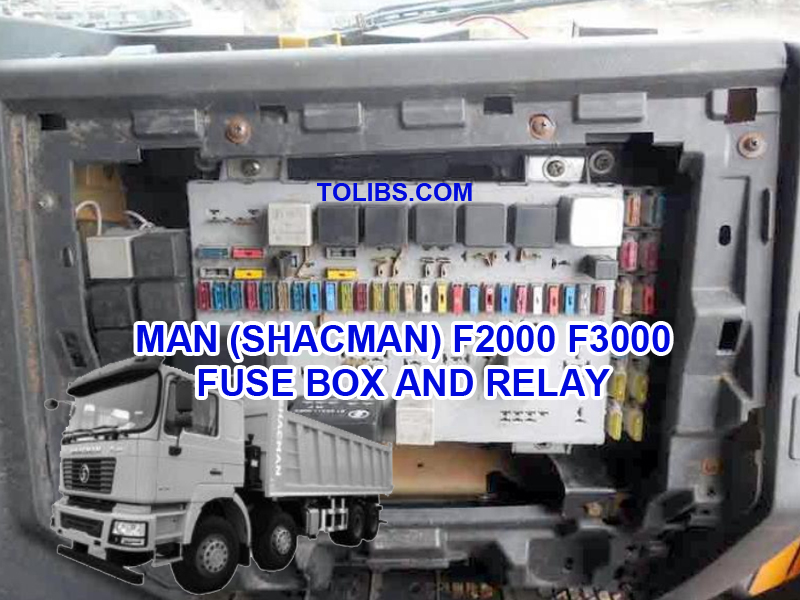

Man (Shacman) f2000 f3000 – Fuse Box and Relay

Shacman F (Shaanxi)is a brand of trucks manufacturedby Shaanxi Heavy. In this material, we will present a description of the fuses and relays for the Shakman f2000 f3000 truck series dump truck, tractor and other modifications that are designed on a common basis withMan f2000 / f90and released until 2020. These cars havesimilar electrical circuits. You can also find fuse and relay fuse box diagrams, photo examples of execution and locations. Select the fuse responsible for the cigarette lighter.

There is no one general description for all Shacman models. The purpose of the fuses and relays depends on the year of manufacture, region of delivery and vehicle equipment level. Check the information with your diagrams on the back of the box cover.

Fuse and relay box

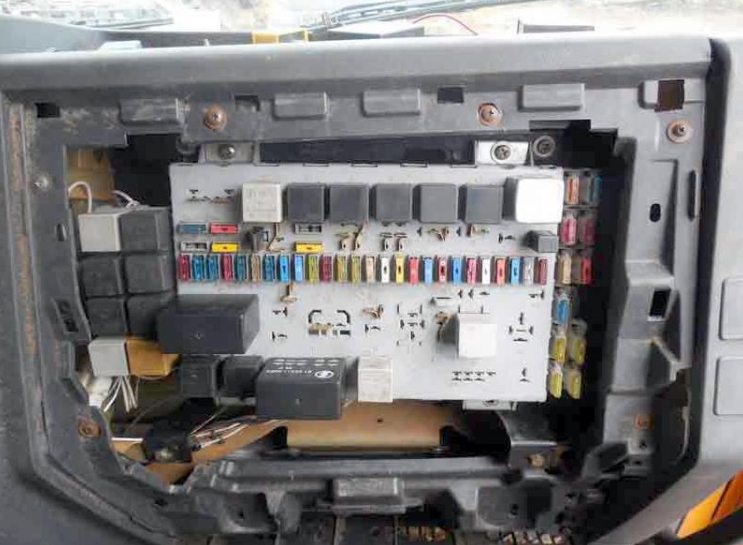

In the Shacman cabin, the main fuse and relay box is located in the instrument panel, on the passenger side.

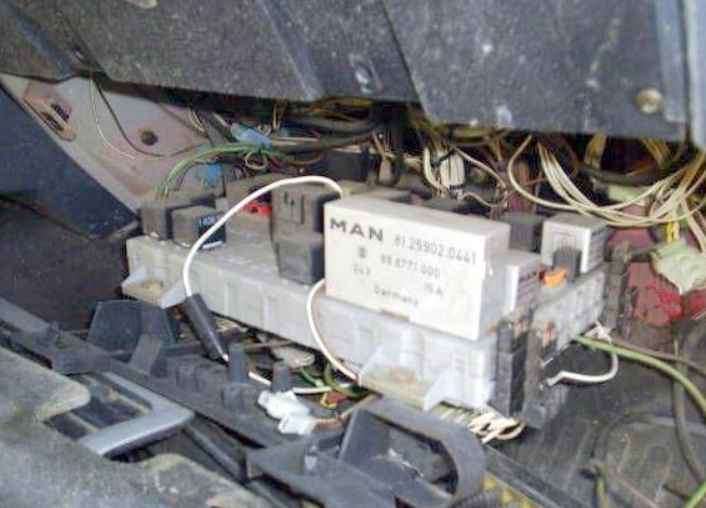

In MAN it can be installed at the bottom of the panel.

In MAN it can be installed at the bottom of the panel.

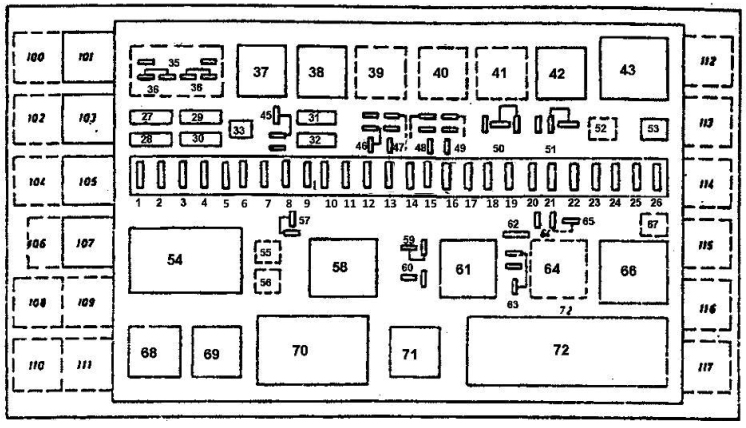

Diagram

Diagram Panel

Assignment
1 low beam, right
2 dipped beam, left
3 high beam, right
4 high beam, left
5 parking and rear marker light, right
6 parking and rear marker light, left
7 medium speed control (spare)
8 fuel filter heater
9 instrument lighting and switch lighting
10 fog lights / rear fog lights
11 fuse stop. engine
12 Interior lighting / Reading lamp / Stair lighting /Hazard light system Tachometer speedograph /Radio
13 ABS (spare)
14 windshield wipers, windshield washers
15 ABS, pressure control valves (spare)
16 ABS / Trailer (spare)
17 gearbox (spare)
18 fan control
19 mirror heating
20 flashing light device
21 stop. motor (shutdown magnet)
22 heating/ventilation
23 brake light / reversing light
24 operation control (indicators, control lamps)
25 cigarette lighter
26 electric torch start-up aid
27 to 32 Spare fuses
33 fuse holder
36 X 36 bridges 56b R-56b, 56b-56b L
37 K 37 relay – parking and rear light
38 K 38 relay – consumers, terminal 58
39 K 39 relay – fog lights
40 K 40 relay – rear fog lamp
41 K 41 electric battery main switch
42 K 42 relay – low and high beam
43 K 43 relay – consumers, terminal 15
44 Free
45 X 45 bridge 2-1
46 X 46 bridge 2-1
47 X 47 bridge 2-3
48 X 48 bridge 2-3
49 X 49 bridge 2-3
50 X 50 bridge 2-3
51 X 51 bridge 2-1
52 V52 diode – electric battery main switch
53 V53 free diode – terminal 15
54 K54 flashing indicator relay
55 Free
56 V56 diode
57 X57 bridge 2-1
58 K58 relay – delays – stop. engine
59 X59 bridge 2-1 (not available for cars with ABS)
60 Free
61 K61 limit sensor – engine brake
62 Ear for a filling
63 X63 bridge 2-3
64 K64 – limit value sensor – speed limiter
65 X65 bridge 2-1
66 K66 power relay – electric torch start-up aid
67 V67 diode – electric battery main switch
68 K68 power relay – flashing indicators, right
69 K69 power relay – flashing indicators, left
70 K70 sensor – glass cleaning interval interrupter
71 K71 relay – cleaning impulse – wiper
72 K72 relay control device – electric torch start-up aid
73 K72 relay control device – electric torch start-up aid
100 Row relay
101 Night light relay
102 Spare
103 Motor braking diodes
104 Spare
105 Spare
106 fuse – headlight washer
107 headlight washer relay
108 Spare
109 work light fuse
110 windshield washer relay
111 windshield washer relay

The number 25 fuse is responsible for the cigarette lighter.
Additional box

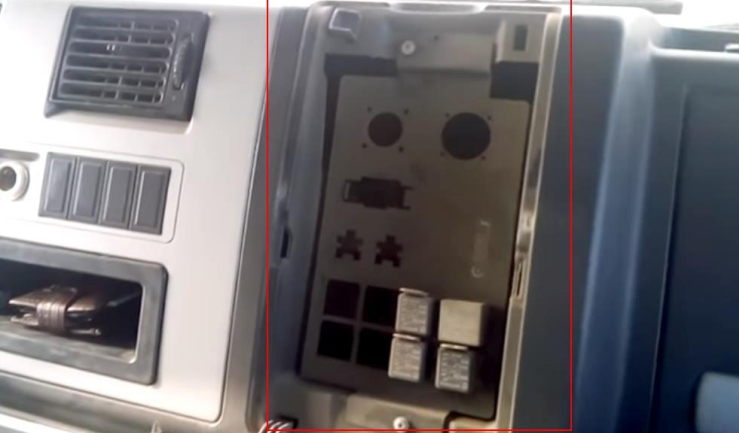

In some models, next to the main one, another unit with a relay can be installed.

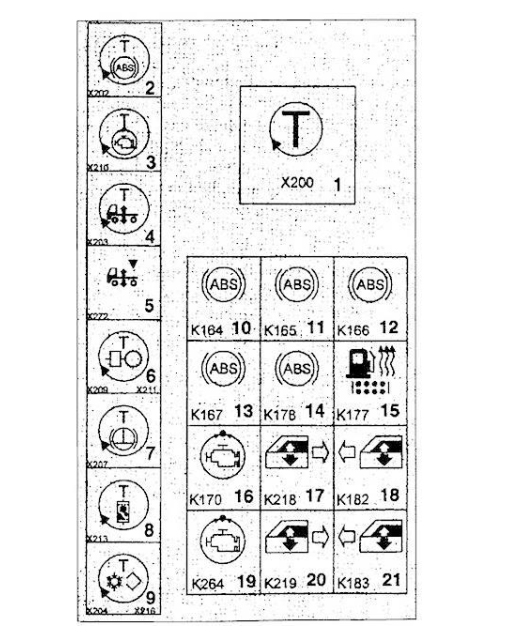

Designation

Designation Diagrams
