FAMILY LUXURY EVOLVED
Mazda CX-9 delivers an exceptional experience for everyone on board with superb design evident everywhere you turn. The spacious interior is finished with quality craftsmanship which is matched by outstanding safety and the latest in driving technology. A range of new and updated features means Mazda CX-9 is a finely crafted luxury and family SUV in one.

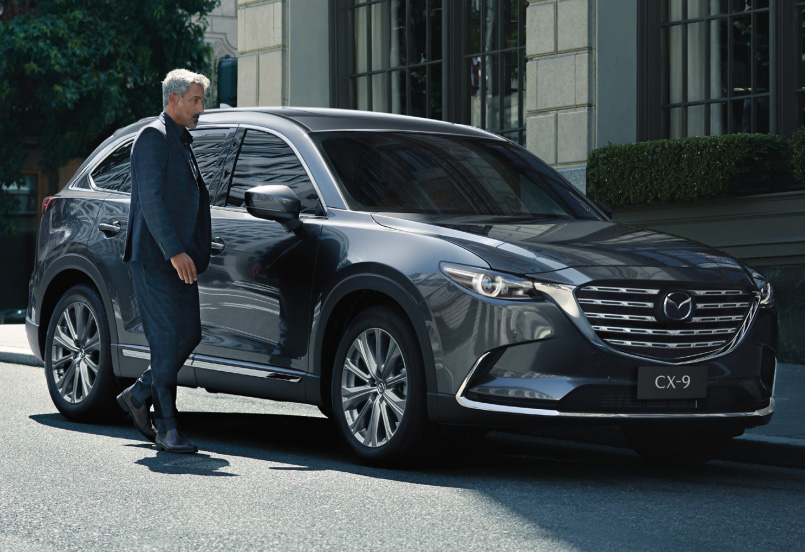

DESIGN, REDEFINED

The elegant styling of Mazda CX-9 redefines the family SUV. In six or seven-seatconfigurations, the exterior lines command a striking street presence and look stunning fromevery angle. New 20" alloys, front grille and larger exhaust tailpipes add even more boldness.

REFINEMENT AT EVERY TURN

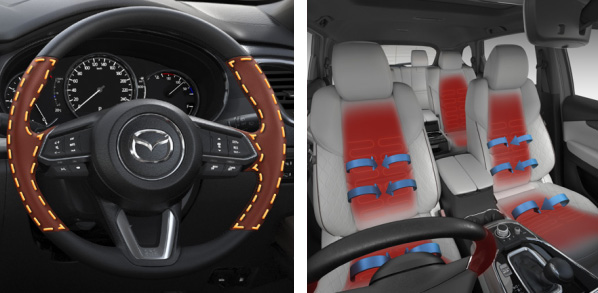

Mazda CX-9 offers unprecedented comfort, technology and spaciousness. Every element of the cabin features exceptional design and superb craftsmanship. To add even more luxury, GT grade and above feature front-row heated seats and heated outer second-row seats, while in Azami grade and above, the front-row enjoys ventilated seats and a heated steering wheel. In Azami LE grade, the second-row now comes with two Captain’s Seats featuring power adjust, a centre console and ventilated seats.

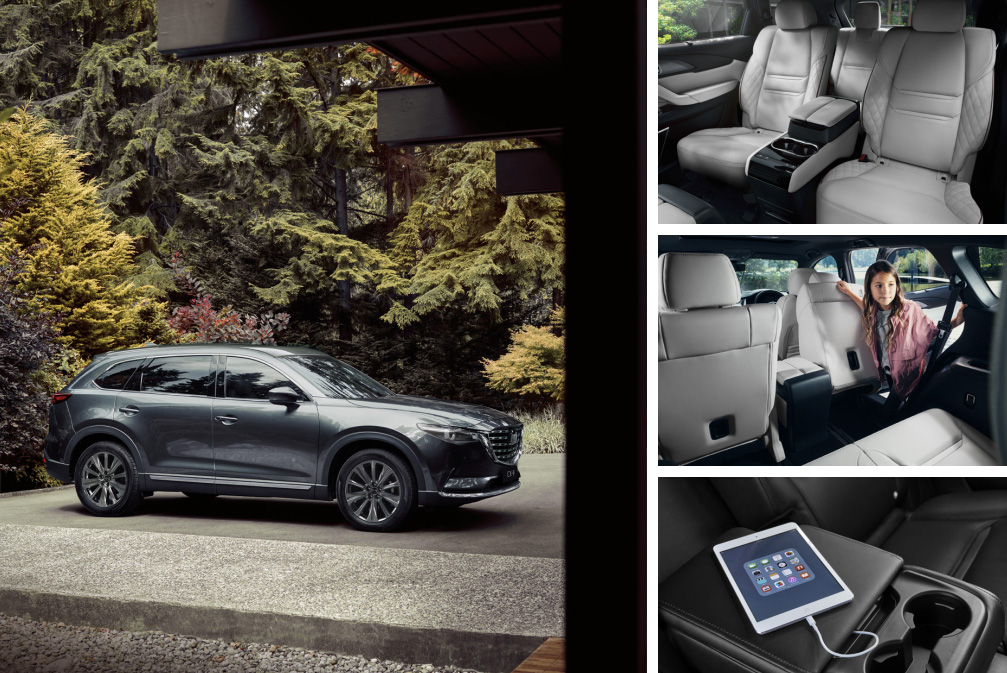

THE ULTIMATE IN SPACE AND FUNCTION

Mazda CX-9 effortlessly accommodatesthe daily demands of the modern familywith a versatile cabin that adapts toall seating and luggage requirements.The third-row is accessed using a simple,one touch walk-in switch, while addedstorage space is integrated throughoutthe cabin, as are USB ports. The rearpower tailgate with hands-free functionadds even more convenience.

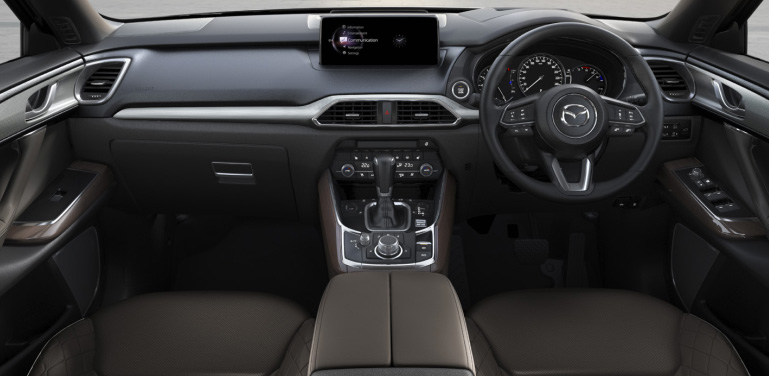

INTERIOR TRIMS AND CRAFTSMANSHIP

You have a choice of trims in Mazda CX-9, all perfectlycomplementing the high quality craftsmanship andpremium finishes, including wooden accents throughout. Mazda CX-9 features the breakthrough Skyactiv-G 2.5T petrol engine. This 2.5-litre direct injection turbocharged engine delivers an athletic driving performance with real-world efficiency that’s previously unheard of in a family SUV.

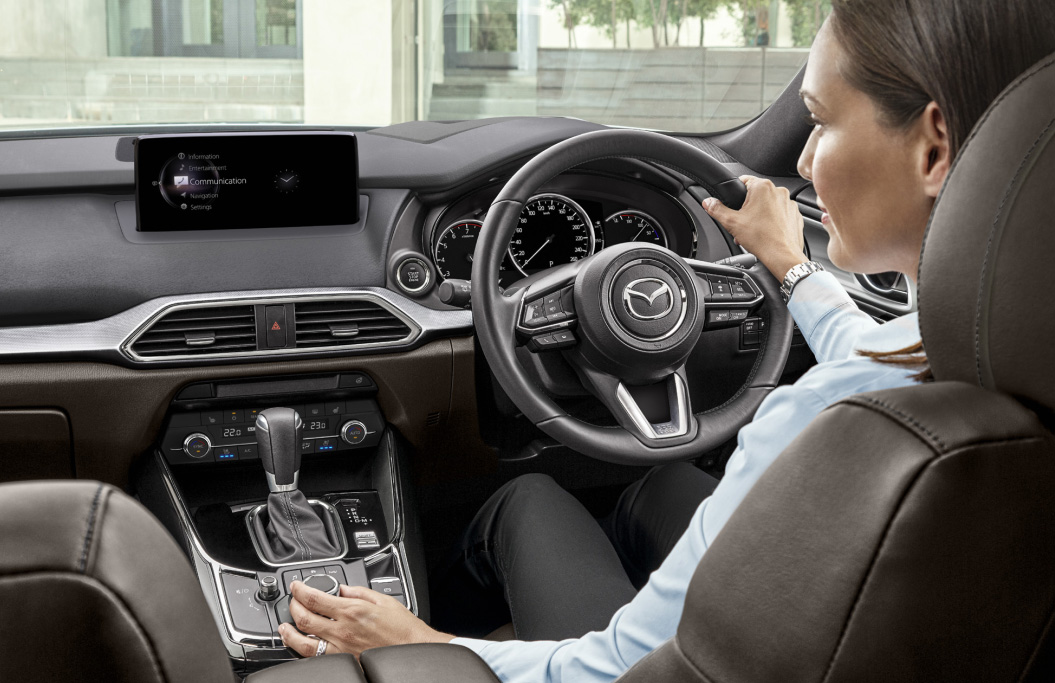

COMPATIBLE CONNECTIVITY

Mazda CX-9 is fully-equippedto handle the entertainment demands of modern families. USB ports are distributed throughout the cabin. Up front,wireless phone charging is available on GT grade and above while Apple CarPlay® and Android™Auto, are standard on every grade,allowing you to access your compatible smartphone via thestunning screen, which is a 10.25" widescreen display on GT grade and above.

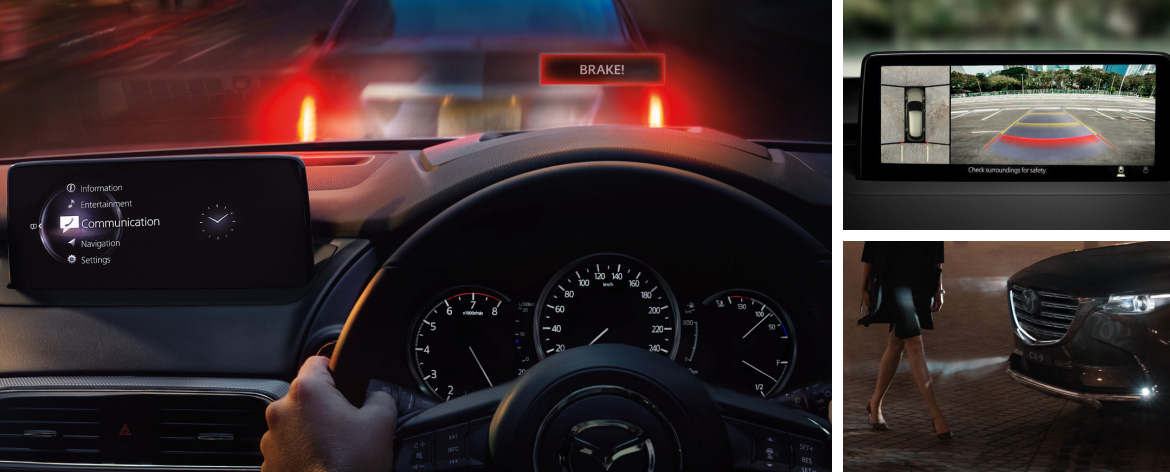

ADVANCED SAFETY LOOKS OUT FOR YOU

Your family’s safety is always a priority. Mazda CX-9 comes equipped with a suite of i-Activsense advancedsafety technologies as standard, assisting the driver to avoid potential hazards.†Along with preventativefeatures, crash-severity-reduction technology is activated in the event of unavoidable impact.

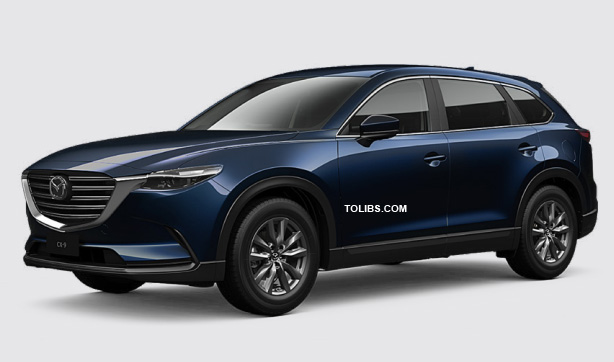

MAZDA CX-9 SPORT

MAZDA CX-9 SPORT FEATURES

• 18 inch alloy wheels with 255/60 tyres
• Headlamps (LED) with auto on/off function
• Wipers (front) 2-speed with rain sensing function
• Power mirrors (body coloured with heating and auto-folding function)
• Active driving display
• Air-conditioning (three-zone climate control) with independent rear control
• Rear-view mirror withauto-dimming function
• Seat trim: Black cloth
• 7-inch touch screen display(MZD Connect)
• Audio system with: AM/FM tuner, Bluetooth® capability, Digital radio (DAB+) and 6 speakers
• Apple Carplay® and Android™ Auto
• Advanced keyless push button engine start
• Blind Spot Monitoring (BSM)
• Driver Attention Alert (DAA)
• High Beam Control (HBC)
• Lane Departure Warning (LDW)
• Lane-keep Assist System (LAS)
• Mazda Radar Cruise Control(MRCC) with Stop & Go function
• Multi-function commandor control
• Parking sensors (Rear)
• Rear Cross Traffic Alert (RCTA)
• Reverse camera
• Satellite navigation
• Smart Brake Support (SBS)
• Smart City Brake Support[Forward/Reverse] (SCBSF/R)
• with night time pedestriandetection
• Traffic Sign Recognition (TSR)
• Tyre Pressure Monitoring System(TPMS)
• Electric parking brake withAuto Hold
• GVC Plus
• Off road traction assist(only on AWD)

POWERTRAIN MAZDA CX-9 SPORT

1. 2.5 litre in-line 4 cylinder 16 valve DOHC S-VT turbo petrol engine with i-stopand i-ELOOP
2. Drivetrain: FWD or i-Activ AWD
3. Fuel consumption (combined):8.4L/100km* (FWD) or9.0L/100km* (AWD)
4. Maximum power: 170kW @5,000rpm
5. Maximum torque: 420Nm@ 2,000rpm
6. Transmission: 6-speed auto(Skyactiv-Drive)
7. G-Vectoring Control Plus(GVC Plus)

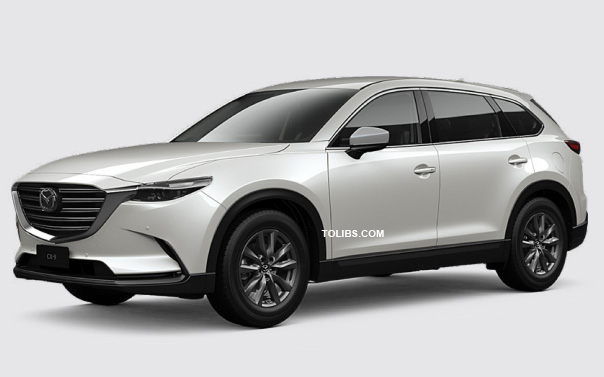

MAZDA CX-9 TOURING

MAZDA CX-9 TOURING FEATURES – ADDITIONAL TO SPORT

• LED fog lamps
• Parking sensors (front)
• Seat trim: Black leather
• Front seats with: 6-way power adjustment (passenger), 8-way power adjustment (driver) and heating function
• Rear seats with: Centre armrest storage and USB input ports(2nd row)
• One touch walk-in switch(2nd row seat)
• 9-inch touch screen display(MZD Connect)
• Advanced keyless entry
• Paddle shift gear control

POWERTRAIN MAZDA CX-9 TOURING

1. 2.5 litre in-line 4 cylinder16 valve DOHC S-VT turbo petrol engine with i-stopand i-ELOOP
2. Drivetrain: FWD or i-Activ AWD
3. Fuel consumption (combined):8.4L/100km* (FWD) or9.0L/100km* (AWD)
4. Maximum power: 170kW @5,000rpm
5. Maximum torque: 420Nm@ 2,000rpm
6. Transmission: 6-speed auto(Skyactiv-Drive)
7. G-Vectoring Control Plus(GVC Plus)

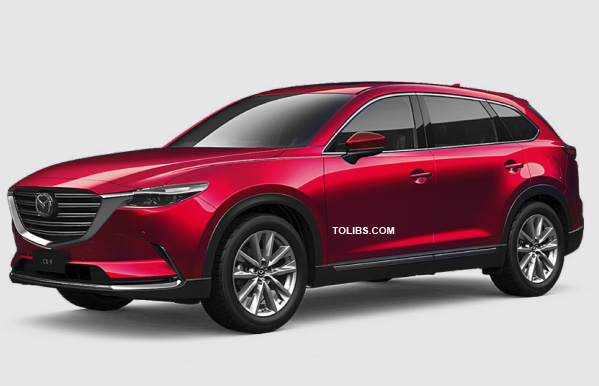

MAZDA CX-9 GT

MAZDA CX-9 GT FEATURES – ADDITIONAL TO TOURING

• 20-inch alloy wheels with 255/50 tyres
• Power sliding and tilt-glass sunroof
• Exterior garnish (Bright)
• Seat trim: Black or Natural stone leather#
• Front seats with 2-position memory function (driver),and10-way power adjustment(driver)
• Rear seats with: Heating function(2nd row outer) and USB charging ports (3rd row)
• Rear door window sunshade
• 10.25-inch widescreen display(Mazda Connect)
• Wireless charger‡
• Premium Bose® 294-wattamplifier and 12 speakers(including subwoofer)
• Remote operated and hands-free power tailgate (open/close)

MAZDA CX-9 GT POWERTRAIN

1. 2.5 litre in-line 4 cylinder16 valve DOHC S-VT turbo petrol engine with i-stopand i-ELOOP
2. Drivetrain: FWD or i-Activ AWD
3. Fuel consumption (combined):8.4L/100km* (FWD) or9.0L/100km* (AWD)
4. Maximum power: 170kW @5,000rpm
5. Maximum torque: 420Nm@ 2,000rpm
6. Transmission: 6-speed auto(Skyactiv-Drive)
7. G-Vectoring Control Plus(GVC Plus)

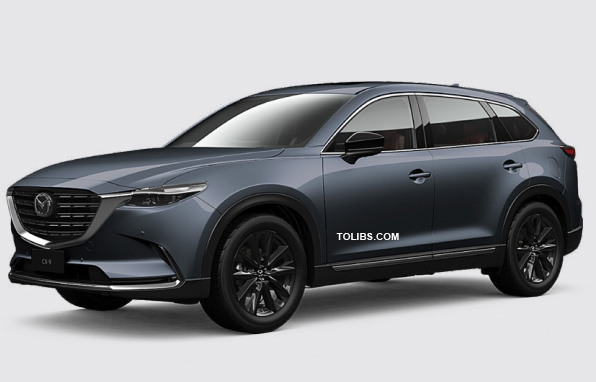

MAZDA CX-9 GT SP

MAZDA CX-9 GT SP FEATURES – ADDITIONAL TO GT

• 20-inch alloy wheels with 255/50 tyres (Black)
• Grille (Black)
• Outer mirror (Black)
• Burgundy leather seats
• Red interior stitch
• Instrument panel (Black)

MAZDA CX-9 GT SP POWERTRAIN

1. 2.5 litre in-line 4 cylinder16 valve DOHC S-VT turbo petrol engine with i-stopand i-ELOOP
2. Drivetrain: FWD or i-Activ AWD
3. Fuel consumption (combined):8.4L/100km* (FWD) or9.0L/100km* (AWD)
4. Maximum power: 170kW @5,000rpm
5. Maximum torque: 420Nm@ 2,000rpm
6. Transmission: 6-speed auto(Skyactiv-Drive)
7. G-Vectoring Control Plus(GVC Plus)

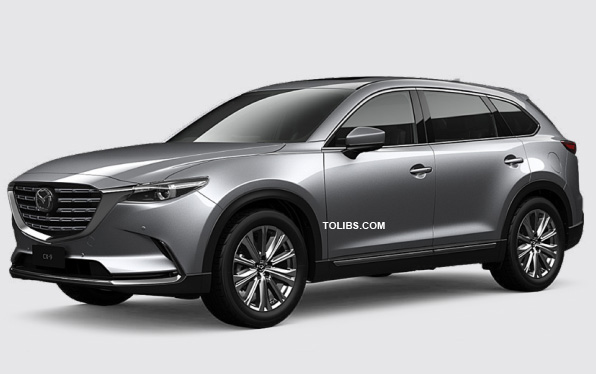

MAZDA CX-9 AZAMI

MAZDA CX-9 AZAMI FEATURES – ADDITIONAL TO GT SP

1. 20-inch alloy wheels with 255/50 tyres (Bright)
2. Titanium grey metallic front grille Adaptive LED Headlamps (ALH)
3. Large diameter tailpipe
4. Seat trim: Walnut brown or Pure white nappa leather with quilting
5. Front seats with ventilation function
6. Instrument panel (Geometry pattern)
7. Unique overhead console
8. Centre console ambient lighting (LED)
9. Real wood decoration panels
10. 7-inch TFT LCD multi-information meter display
11. Heated steering wheel
12. Hand-crafted box stitch steering wheel
13. 360° View Monitor
14. Frameless rear-view mirror

MAZDA CX-9 AZAMI POWERTRAIN

1. 2.5 litre in-line 4 cylinder16 valve DOHC S-VT turbo petrol engine with i-stopand i-ELOOP
2. Drivetrain: FWD or i-Activ AWD
3. Fuel consumption (combined):8.4L/100km* (FWD) or9.0L/100km* (AWD)
4. Maximum power: 170kW @5,000rpm
5. Maximum torque: 420Nm@ 2,000rpm
6. Transmission: 6-speed auto(Skyactiv-Drive)
7. G-Vectoring Control Plus(GVC Plus)

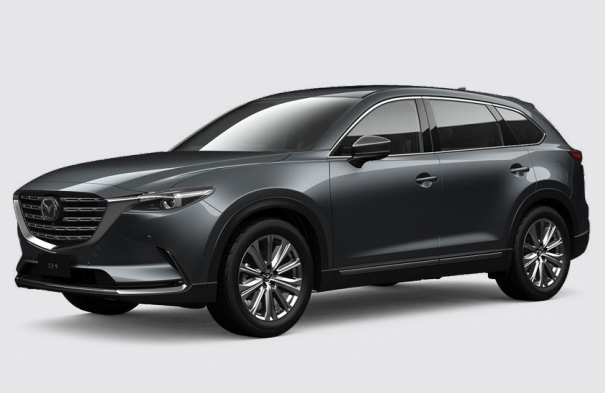

MAZDA CX-9 AZAMI LE

MAZDA CX-9 AZAMI LE FEATURES – ADDITIONAL TO AZAMI

• 2nd row Captain’s Seats with power adjust and ventilation function
• 2nd row centre console with cup holder

MAZDA CX-9 AZAMI LE POWERTRAIN

1. 2.5 litre in-line 4 cylinder 16 valve DOHC S-VT turbo petrol engine with i-stop and i-ELOOP
2. Drivetrain: i-Activ AWD
3. Fuel consumption (combined):9.0L/100km* (AWD)
4. Maximum power: 170kW @5,000rpm
5. Maximum torque: 420Nm @2,000rpm
6. Transmission: 6-speed auto(Skyactiv-Drive)
7. G-Vectoring Control Plus(GVC Plus)
