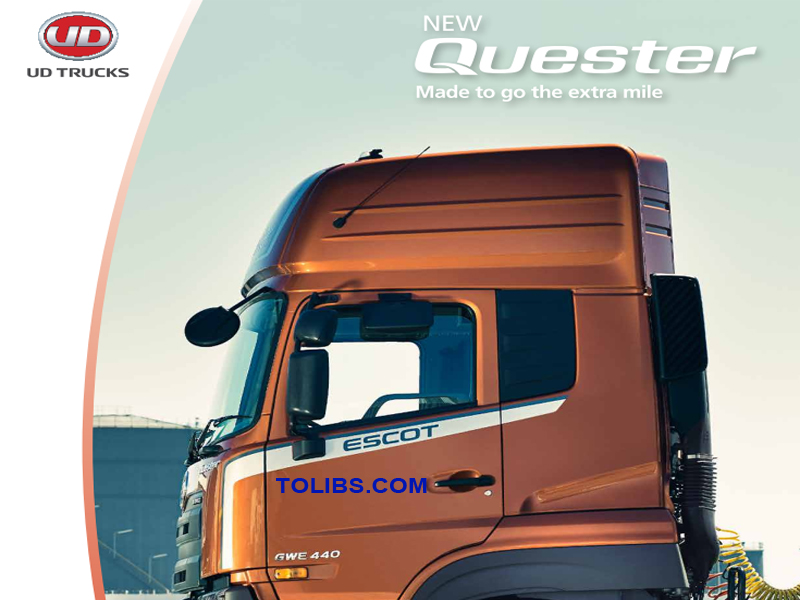

UD Trucks Quester GWE440 Specifications

UD Trucks Quester GWE440 Technical Specifications

The Journey to New Quester. An evolution in Japanese innovation.
Every great story starts with a dream. In UD Trucks’ case, the dream started for our founder Kenzo Adachi in 1935 when he had the vision to create the trucks the world needs today. With this inspiration, he took the legendary3,000km test drive across Japan, an astonishing adventure that already then demonstrated the exceptional durability of the company’s trucks.

Since then, UD Trucks has earned a global reputation of delivering durable,reliable and efficient trucks, with Ultimate Dependability. Our official export business began in 1961, and since then the philosophy of always going the extra mile for our global customers has helped us supply innovation and reliability to several generations of fleet owners and drivers.

Quester a proven transport solution
Quester is a heavy-duty truck that combines first-class fuel efficiency with durability. On its launch, the Quester provided solutions to the transport industry that required flexibility and efficiency.

Part of a new generation of UD trucks,Quester was specifically developed for all types of heavy-duty transport assignments, and developed with the global resources of the Volvo Group.A major milestone.

Quester has evolved with the world.
New Quester is here an evolutionthat provides smarter solutions totoday’s transport challenges. Buildingon proven robustness and reliability,New Quester introduces key features such as ESCOT automated manual transmission, retarder, electrical cab tilt,engines with higher horse power and user-friendly telematics. These deliver even greater productivity, fuel efficiency,uptime, driver efficiency and safety.

New Quester features
New Quester has a host of new features that let you focus on running your operationsthe way you need to.

1. PROduCTiviTy 8-13
2. FuEl EFFiCiENCy 14-19
3. dRivEREFFiCiENCy 20-23
4. SAFETy 24-27
5. uPTiME2 8-33

New Quester models for new possibilities
From distribution to long haul, New Quester has your business needs covered.

• cKe: 4×2 rigid
• cde: 6×2 rigid
• cWe:6×4 rigid
• cQe: 8×2 rigid
• cGe: 8×4 rigid
• GKe: 4×2 tractor
• Gde: 6×2 tractor
• cWe:6×4 tractor

A smart move for new possibilities
MEET THE NEW QuESTER RANGE.
New Quester’s flexibility makes it suitable across a variety of applications and segments such as general cargo, long haul, construction and waste management.And now ESCOT’s added power and performance in New Quester means that these and many other assignments can be carried out with increased fuel and driver efficiency. Optimized specifications such as reduced tare weight allow you to carry more. And with the introduction of smart new connected features such as telematics, you can stay on top of your tough daily schedule.

The Challenge
NEEd FOR GREATER PAylOAd.
Maximizing your resources equates to ensuring productivity and efficiency on every transport assignment. Every truck in your fleet should operate at its capacity.

the solution
OPTiMiZEd TARE WEiGHT.
New Quester offers you more payload and productivity possibilities than ever. The optimized tare weight and driveline have significantly reduced the truck’s weight, allowing youto transport more on every trip.

Transport more with New Quester
When combined with a powerful driveline, lighter tare weight offers the possibility to transport more cargo on longer distances.

• Strong, durable and lighter aluminium wheels and tanks mean more cargocan be carried
• Larger aluminum fuel tanks capacity allows your trucks to be on the road longer

New Quester’s high performance drivelineteams up with lighter tare weight to makelong haul, distribution, construction, wasteor utility assignments more productive.

Optimized driveline
The 8-liter and 11-liter engines powered by UD Trucks’ advanced technology, combine reliability with top class performance. Delivering high torque from low revs with flat torque curves, these modern engines provide:

• Better pulling power and easier driving.
• Improved fuel efficiency.
• Extended maintenance intervals.
• Longer life of the engine.

And with a wider range of power specifications now available, the new truck offers even greater flexibility for more assignments. By selecting the right powertrain combination, you increase driver efficiency, helping boost your bottom line.

ESCOT - automated manual transmission
With key components made of aluminium, ESCOT* automated manual transmission contributes to New Quester’s low weight for higher payload. Choosing the right gear at all times, ESCOT delivers efficient,productive driving with high average speeds and low operating costs.

The PWR+ mode on ESCOT makes construction assignments productive with increased power and high running performance in tough conditions. It features a rock loose mode for quick escape when stuck in slippery and muddy conditions. Optimized for both on-road and off-road applications. It is factory installed and available on New Quester models.

Robust manual transmissions
All New Quester models also comewith a choice of reliable and durable,6-speed, 9-speed and 12-speed manual transmission, that are able to cope with the toughest demands in various operation conditions.

Allison - automatic transmission
Whether servicing city distribution,waste management or out on the construction site, New Quester featuring Allison is a perfect solution for start-stop operations, with its torque converter. Drivers at all levels experience less fatigue, and can focus on the road at all times and during any maneuver. No clutch also means lower maintenance costs.

Easy superstructure
iNSTAllATiON
New Quester is designed for ease of superstruc-ture installation, with comprehensive bodybuilder instructions and drawings. The parallel side members, designed for bodybuilder mounts and range of power take-offs make installation easier.

Seamless fleet control.
UD Telematics is a high-tech wireless communications system that helps your fleet towards greater productivity. It integrates a host of features designed to support you and your business. The new easy-to-use UD Telematics mobile app makes 24/7 fleet management convenient and simple.

Flexible cab layout
The largest cab in UD Trucks’ history is perfect for long haul. Walk-through with bunk beds and plenty of storage, the largest in class high roof cab also features a clear instrument panel where everything is within easy reach. More productive assignments are the result.

More ratios with new axle
Additional ratios on the new single reduction axles allow better flexibility in optimizing the driveline for your application.

• Robust high-strength material delivers superior performance
• Greater choice to suit need for torque, tractionor fuel economy

Class-leading axle loads
Quester tops the class in terms of front and rear axle loads.

• Both axles are built extra durable to enable high loads
• Hub reduction version is available for tough construction assignments

Transmission retarder
A new hydraulic retarder delivers enhanced braking torque.This helps New Quester improve productivity by making journeys faster. The retarder is coordinated with UD Trucks’Extra Engine Brake and maintains a steady speed while travelling downhill without using service brakes.

The retarder delivers several key benefits including:

1. Reduced brake wear
2. Steady speed of travel on long downhill drives
3. Reduced probability of accidents due to brake fade

GH11E ENGiNE WiTH ESCOT.
Building on Quester’s excellent fuel economy, New Quester introduces ESCOT automated manual transmission (AMT). Automated gear shifting makes New Quester easier to drive and more fuel efficient,even for new drivers. Helping you make the break towards lower operating costs.

RiSiNG FuElCOSTS.
Rising fuel costs have become a major issue for the transport industry globally. Increasing overheads are putting pressure on your business. It’s tough to stay ahead of the competition.

ESCOT - big news for New Quester
Easy & Safe Controlled Transmission. First created in 1995 in Japan to reduce fatigue by eliminating clutch operation, ESCOT continues to evolve. Now matched with New Quester, it enables all driversto achieve superior fuel efficiency.

So what is ESCOT?

• A fast-responding automated manual transmission that has built-in intelligence
• Quickly and automatically choosing the right gear at all times

ESCOT: The Benefits

• Better fuel efficiency via seamless gear shifting for every driver
• Improved productivity and efficiency via easier driving
• Less stress and fatigue increases safety
• PWR+ mode offers greater driving stability and smoother takeoff in tough conditions

How does it work?

1. ESCOT-E automated manual transmis-sion features a non-synchromesh manual gearbox that has an electroni-cally regulated pneumatic gear changing system and an automatic clutch.
2. The secret of seamless gear changes lies in the intelligent electronic control unit, controlling the pneumatic system that handles the clutch and shifts.
3. By constantly receiving information about speed, acceleration, weight,road condition, torque demand and more, ESCOT-E can carry out every shift with extreme precision.
4. It also communicates closely with the engine to adjust revs and engine brake effect for fast, comfortable,fuel efficient gear shifts.

How does it actually improve fuel efficiency?
First of all, internal energy losses are low - actually lower than on manual gearboxes. However it’s the electronics that really make the difference. When driving in ECO mode, every gear change is timed precisely, to let the engine work at its most efficient rpm range.

ECO-ROll
When in cruise control, the ESCOT ECO-Roll fuel-saving feature calculates when it is optimal for trucks to roll down slope in neutral. It maintains speed by automatically disengaging the engine when on flat or down slope. This makes use of the truck’s momentum instead of burning fuel.

Powerful and efficient performance
The engines deliver high torque and pulling power at low RPMs, while flat torque curve minimizes need for gear changing. Meaning higher average speeds and lower fuel consumption in the long run.

• The GH8E now features 350 hp
• The GH11E has the option of 440 hp

More power and performance when you need it:
GH8E

• 8-liter diesel engine
• Low operating cost via reduced maintenance and long service intervals
• Turbocharging with air-to-air intercooler
• Power/torque: 250 hp/950 Nm, 280 hp/1050 Nm, 330 hp/1200 Nm, 350 hp/1200 Nm

Available transmissions:

• Automatic (Allison)
• Manual

GH11E

• 11-liter diesel engine
• Good torque at low revs delivers fast acceleration
• Low fuel consumption via wide rev range & high thermal efficiency
• Maximum torque within a wide rev range
• Electronically controlled cooling fan reduces losses
• Available with optional UD Extra Engine Brake
• Turbocharging with air-to-air intercooler
• Engine driven power take-off with high torque output of maximum 650 Nm
• Low noise and vibration when idling
• Power/torque: 370 hp/1700 Nm, 390 hp/1800 Nm, 420 hp/2000 Nm, 440 hp/2000 Nm

Available transmissions:

• ESCOT-E automated manual transmission
• Automatic (Allison)
• Manual

Cruise control
Cruise control reduces driver workload on longer journeys and helps to reduce fuel consumption by maintaining a constant speed.

Electric viscous fan
New Quester features an e-viscous fan,which improves efficiency of the cooling system, increasing engine performance and enhancing engine fuel economy by reducing friction with cooling fan.

UD Telematics services
Our designed solutions are aimed at encouraging better driving behavior and protection of fuel assets:

1. Fuel utilization reports provide information about truck and driver performanceFuel advisory services encourage better driving behavior
2. Fuel loss alert notifies fleet managers about sudden drops in fuel
3. With UD Telematics mobile app, optimized fuel performance is at your fingertips

Aerodynamic cab design
New Quester cab is designed for increased fuel efficiency.

• Improved fuel efficiency athighway speeds
• Optional roof deflector reduces coefficient of drag by 5%

DRIVER SHORTAGE
Driver shortage has been an issue in the trucking industry for several years. Road freight demands have increased, competition is stronger, and thus the pressure to deliver on time is greater than ever. Attracting and retaining new drivers in these circumstances is a tough task.

LARGER CAB AND ESCOT
New Quester features a spacious cab with a more pleasant and comfortable working environment. The cab doubles as a mobilehome on long haul assignments, delivering flexibility for a productive working day on the move. And with ESCOT onboard, a more efficient drive is the result. New Quester is a truck your drivers will be proud of.

More space for success
Giving drivers more comfort and room to live and work opens up your business to more profitable opportunities.New Quester takes this to a new level.

High Roof Cab
The new High Roof Cab is the largest ever built by UD Trucks. An impressively spacious, walk-through cab is equipped with upper and lower bunk beds for shared long-distance assignments.

Cab air suspension
With the introduction of cab airsuspension, cab vibration is greatly reduced. This helps lessen driver fatigue and enables better productivity. A smoother ride is also much kinder to the goods being transported. An air suspended cab is more versatile on different typesof terrain, and offers a more consistentall-round driving experience.

New driver seat
Around 80% of truck drivers globally suffer from back problems due to long driving hours. New Quester featuresa new air suspended seat with lumbar support and optional armrest for improved driver comfort. A worthwhile investment in reducing lost time injuries and retaining drivers.

A cab to call home
With its easy in and out three-step entrance, New Quester warmly welcomes drivers. All vital instruments are withineasy reach, an ergonomically designed dashboard and clear information display allowing focus to stay on the road ahead.There are ample storage options and room for home comforts. All in all, a bright,smart, modern environment that drivers can settle back and get to work in.

New driver training courses
We ensure that all drivers get the fulllow-down on exactly the truck they will drive. Driver training from day one means that efficient driving and improved fuel economy don’t have to wait. Plus, drivers getting familiar with features and daily checks increases on-road safety.

Comfortable and efficient driving performance
ESCOT, the latest evolution in 12-speed automated manual transmission, and an interior designed for driver comfort, provide a sophisticated and comfortable driving experience that reduces driver stress and fatigue.In an average daily truck operation with a manual transmission, drivers need to shift 1,000 to 1,500 times per day. This constant routine requires focus that could be better devoted to the road and assignment. With ESCOT always selecting the optimal gear, drivers can improve efficiency and productivity regardless of their skill level or experience.

Simple and easy-to-use gear lever
The ESCOT gear lever uses a straight shifting pattern,an evolution in simple and easy-to-use design.

• Reverse: Creep function is available in the reverse mode to approach loading dock safely.
• Neutral: Gear lever position for when the truck is parked.
• Drive: Programmed for automatic and precise gear changes and fuel efficient driving of a professional driver.
• Manual: Manual mode. You can use the convenient +/- button on the side of the gear lever to changeup and down.

Unparalleled operability
ESCOT provides advanced gear change control and suppresses fluctuations in fuel efficiency. Enhancements to hardware and software control achieve fast and accurate gear changes. Quick and smooth gear changes reduce the driver’s level of stress and fatigue while contributing to safe driving. Performance is also improved on uneven surfaces and muddy roads.

High visibility rear view mirrors
New Quester cab provides first-class all-round visibility and depending on customer preference or regulations there are two types of rear view mirrors, namely Japanese type and ECE certified.

driver training
UD Trucks currently offers several useful courses for drivers. This training helps even experienced drivers improve their efficiency behind the wheel for more cost-effective and safe driving.

ECE certification
The Quester is fully ECE (Economic Commission for Europe) compliant, meaning that cab safety, braking, ADR,lighting and noise requirements are all certified and approved to European standards. ECE R29 for cab strengthis part of this certification.

Front underrun Protection system
The Quester’s cab exterior has been designed and developed with the focus on safety. The Front Underrun Protection System (FUPS) is equipped to prevent smaller vehicles from being wedged under the front in the event of a collision. Available as an option for three-piece steel offroad bumper.

Auxiliary brake
A reliable auxiliary braking system on New Quester helps to maintain safe speeds and delivers powerful braking without fade. The UD Extra Engine Brake (UD EEB)is a powerful engine brake that is optional with the 11-liter engine. It back pressures the cylinders within the engine, using exhaust pressure and a patented ingenious valve system. There is no generation of heat or extra wear and tear on equipment.

ESCOT and Automatic (Allison)
Cutting out the need for manualgear-changing means drivers cankeep their attention on the road.Therefore the addition of ESCOT and option of Automatic (Allison) in New Quester are both good news for operational safety.

Hydraulic retarder
The presence of hydraulic retarder makes downhill driving easier. In loaded vehicles in particular, the vehicle speed can be controlled without applying the service brake. This reduces brake wear and prevents accidents due to brake fade.

brake Max mode with ESCOT
When not coupled with a hydraulic retarder, ESCOT features a Brake Max Mode which allows the transmission to continuously downshift for a more effective use of the EEB.

Other braking functions include:

• Exhaust brake on GH8E and GH11E enables fast, reliable engine braking
• ABS (Anti-lock Braking System)improves braking on all surfaces
• Full S-cam air brakes are super-durable for constant use

Getting familiar with today’s tracking technology isn’t easy when fighting against the clock in a daily schedule of demanding assignments. Complex,multi-layered interfaces and login procedures can make it difficult to access the detailed information when you need to make quick, positive decisions to choose the most efficient routes and maximize truck uptime.

To maximize the profitability of your business, you need to be able to manage your fleet effectively. Keeping it on the road longer while reducing ongoing costs. UD Telematics Services will help you improve your profitability by maximizing vehicle uptime and fuel efficiency, while reducing unplanned stops and operational costs.

A longer life for components
Proven Japanese reliability and robustness are what our trucks offer. Each component is the result of years of development and rigorous stress testing to create the ultimate truck. New Quester, with its smart, modern, durable features, takes this one step further. For greater peace of mind.

Robust, high-tensile steel chassis frame
The key to efficient transport is increased payload. Quester uses high-tensile steel rails for the main frame to reduce the vehicle’s weight, to achieve further improvements in loading performance. It also comes with a rolling form frame which is good for vertical stress and torsion stress when rolling and pitching happen together. This reduces stress from uneven road surfaces, loads with high center of gravity and unevenly distributed loads, making it suitable for many different conditions.

Tough rear leaf suspension
The rear leaf suspension on the 6×4T/R and 8×4R is designed for rough conditions and particularly suitable for construction where durability and high reliability are of highest importance.

Three-piece steel off-road bumper option
A sturdy three-piece steel bumper with high ground clearance and excellent approach angle, is suitable for construction and offroad assignments.

longer service intervals
The maintenance interval of lubricants for engine transmission and various gears are significantly extended.Oil-bathe type of the front axle hub and the larger capacity of the clutch and brake will reduce the lifetime maintenance costs.

Easy maintenance
The large opening of the electric cab tilt allows for easy,quick and safer access to the engine. For daily inspections and maintenance, a checklist is centralized on the front lid.

Hub reduction for tough jobs
For rough and hilly operations, New Quester offers hub reduction for the 6×4R, 8×4R and 6×4T configurations.The increased robustness of the hub reduction axle ensures easier operation, higher ground clearance and longer lifeof driveline components.

Extended clutch life span
Clutch life on trucks with ESCOT automated manual transmission is estimated to last much longer than those with manual clutch. A transmission retarder ensures less wear of the service brake liners. This ensures brakes stay healthy and functioning and longer intervals between replacements.

UD Telematics Services will help you boost your business by maximizing vehicle uptime and fuel efficiency, while reducing unplanned stops and operational costs. Our services integrate a host of features designed to support you and your assignments.

Geofencing allows you to draw virtual boundaries, which alert you with customized messages when your vehicles cross these boundaries.Geofences can also monitor speed limits within each zone and alert you when these speed limit thresholds are crossed.

The UD Telematics mobile app is a compact version of our UD Telematics web platform, which is available for both iOS and Android devices:

• Know where every truck is, 24/7
• Set the fastest, most direct routes via the Geofencing feature
• Draw boundaries and get alerts if vehicles deviate from route
• Receive alerts when speed limit thresholds are crossed
• Easy-to-understand information

UD Extra Mile Support
UD Genuine Service
Our UD local Gemba delivers consistent performance for our customers and their businesses. We are continuously improving, being customer-driven,understanding challenges, problems and opportunities. This allows usto go the extra mile to support our customers.

Optimized Service Planning
With longer service intervals, you won’t have to visit our workshops and instead get the most out of your fleet. Our optimized service planning uses telematics, which helps us plan any maintenance remotely. It also lets us customize service schedules for your specific application.

UD Service Agreements
Three levels of UD Trust service care are available: UD Trust Standard, UD Trust Extra and UD Trust Ultimate. Withthese three levels, full transparency, no surprises with unplanned repair expenses and less administration are guaranteed.

UD Driver Training
We want to encourage new drivers to make a positive contribution to your operations. Our Driver Trainingprogram is designed to help builddriver capability. Courses cover not only vehicle handover and operation, but also the best methods for fuel efficient and safe driving. Dedicated modulesare available for long haul drivers.

UD Genuine Parts
Because every part of your trucks matter. Designed and tested to provide the highest quality and durability, and with a one-year warranty, access to UD Genuine Parts increases uptime and lowers costs per kilometer.

UD Telematics
UD Telematics Services is a smart,high-tech wireless communications system supported by our network of UD dealers and specialists. It is designed to improve your competitive position through business improvement and efficiency. Remote diagnostics monitor truck health and performance, helping to reduce fuel and operational costs, improving fleet management, increasing vehicle uptime and offering you peace of mind.

UD Mobile Workshop
UD mobile workshop brings basic workshop services right to your doorstep. Our trusted professional mechanics can provide preventive maintenance, basic repairs, oil changes or electronic diagnostics using UD Trucks systems and tools. Saving you time and money for the long haul.

UD Road Support
We know how it feels to experience an unexpected standstill. Operating 24/7,UD road support will get you back up and running in no time. Offering reliable UD Genuine Service and quality UD Genuine Parts, our dedicated call center specialists will stay with you every step of the way until your issue is resolved.

Chassis
The chassis is designed to provide very high vehicle strength and reliability. Large offer of chassis layouts to give a flexible packing arrangement including different wheelbases, range of fuel tank sizes and different exhaust directions. Large range of options to meet legal requirements on some markets such as side and rear under-run protection, propeller shaft catcher, rear reflectors. Range of optional extras such as wheel chocks, spare wheel carrier, towing memberand couplings.

Maintenance
Engine Service points are located behind the grille for ease of service.The oil dipstick is conveniently located at the back of the cab.Cab tilt angle 58 degrees for ease of access to the engine.

Frame
Roll formed high-tensile steel frame providing strength, elasticity and excellent durability thanks to high resistance against both vertical loads and torsional stress. Frame in either 7 or 8 mm thickness with strength 590 N/mm2. Different length of 5 mm inner liner available as options for additional strength.

Fuel tanks
Round shaped steel fuel tanks mounted either LHS or RHS.Low profile 560 mm in size 210 or 315 liters.
High profile 710 mm in sizes 210, 315, 405 or 610 liters.Fuel cap lock offered as option.
D shaped aluminum tanks also availalbe as an option. 710mm dia in sizes of 405L or 330L, or a combination of 490+330L for 6×4T model only.

Bumper
Two options available:

• Three piece moulded composite bumper designed for on-road use.Aerodynamic design and low ride height contributes to better fuel economy. Front under-run protection as standard. Fog lamps available as an option.
• Sturdy three piece steel bumper designed for construction andoff-road applications. High ride height contributes to high ground clearance and good approach angle.

rear wings and mudguards
Made of durable plastic as standard on tractors. Rear quarter wings are available as an option. Fenders are an option on rigid vehicles.

Fully built tractors

• 4×2/6×2/6×4 fully built tractors directly from the factory.
• SAF-Holland or JOST low maintenance fifth wheel options.
• Different fifth wheel positions can be ordered.
• High trailer connection arch for convenient trailer coupling.
• Reduces risk of damage to cables and air hoses.
• Catwalk with anti-slip surface as an option.
• Steel footstep on the battery box.
• Trailer brake connections.
• Working lamp as standard

ADR
ECE tested ADR sepcification is available as an option for Quester models specified with manual transmissions. This provides a fully protected wiring harness and electrical system shut-off switch onthe dashboard.

Suspension
Front suspension
Front parabolic springs provide high strength combined with low weight. Front axle load is either 7.5 tons or 8 tons. On the 8×4R the front axle load is 15 tons.

Rear suspension 6×4T/rand 8×4r
Can be specified with a 23T capacity multileaf bogie for light load applications, or a 26T multileaf bogie for heavy duty applications.Load distribution is always 50/50. Designed for rough conditions and particularly suitable for construction. Rubber springs between the springs and rear axles contribute to good comfort under all axle loads.Rubber journalled V-stays and reduction rods take up both longitudinal and transverse forces to give a smooth operation.
Available for high chassis height with both single and hub reduction axles. Stabilizer as option for construction applications.

Rear suspension 6×2T/rand 8×2r
This is specified with the rear suspension with a maximum bogie load of 23 tons. Multileaf spring with 9 leaves for rigids and 8 leaves for tractors. Load distribution 50/50. Available with different options depending upon the market requirements:

• Bogie lift (BOGLIFT)
• Bogie press (BOGPRESS)
• Without lift (ULIFT)

Rubber springs between the springs and rear axles contribute togood comfort under all axle loads. Rubber journalled V-stays and reduction rods take up both longitudinal and transverse forces togive a smooth operation. Available for chassis height medium with single reduction axles.

rear suspension 4×2T/r
This is specified with the rear suspension with a maximum axle loadof 13 tons.
Sixteen (16) leaf dual stage multileaf spring.
Designed for high strength with good comfort.
The main spring works when the vehicle is partially loaded andthe helper spring comes into action at full load.
Available for chassis height medium with single reduction axles.
Spring length 1 370 mm, width 90 mm.
Sliding type attachment.

Brake system
Pneumatically controlled.
Full air brake system with S-cam drum brakes.Automatic slack adjuster.
ABS (Anti-lock Braking System) is available as option.
Auxiliary parking brake chamber as option intended for heavier gross combination weights to fulfill the requirements of added parking brake power in this segment.

Auxiliary brakes
Exhaust engine brake.
The GH11E engine can be specified with the optional UD ExtraEngine Brake (UD EEB). An integrated hydraulic retarder is available as an option withESCOT-E and Automatic (Allison) transmissions, for more effective braking and longer life of service brakes. When specified, the retarder actuation is integrated into that of the exhaust/engine brake stalk.

GH11e general description
In-line 6-cylinder four-stroke diesel engine with unit injectorhigh-pressure direct injection. 4 valves per cylinder. Turbocharging with air-to-air intercooler.

GH8e general description
In-line 6-cylinder four-stroke diesel engine with common railhigh-pressure direct injection. 4 valves per cylinder. Turbocharging with air-to-air intercooler.

Cabin exterior
Standard roof cab with option of on-road or steel off-road bumper High roof cab with on-road bumper or steel off-road bumper

Modern styling with robust look on the construction truck:

1. Front under-run protection as standard on the on-road bumper and optional for steel off-road bumper
2. Low running costs due to aerodynamic design and option of air deflectors
3. Coil spring suspension or air suspension as an option for high comfort,durability and easy maintenance
4. Electric cab tilting for convenience and easy servicing access
5. Step height on tractor chassis 510 mm, bar type steel step

Clutch
Hydraulically operated single-disc clutch.

Transmission ratio Manual
GH8E: 8.71-1.00 (6-speed); 12.11-1.00 (9-speed)GH11E: 13.95-0.73 (9-speed); 12.10-0.78 (12-speed)

Transmission ratio AMT
GH11E: 11.729-0.785 (12-speed OD); 14.941-1.00 (12-speed DD)

rear axle ratios
A wide range of ratios is available, so that the driveline can be optimized in order to get the maximum drivability and best fuel economy in the required application.

Power Take-Off (PTO) system
Engine PTO options are available on both 8L and 11L engines with either a flange or a spline output. Various transmission PTO options are also available with both output types on the manual and AMT transmissions.

Dashboard
Ergonomically designed to ensure that the most important controlsand switches are within easy reach of the driver and also that the switches are marked. They are easily recognizable. The steering column has easily adjustable angular and telescopic adjustment to give the driver the best driving position.

Driver’s information display
With a large, easy-to-read 4.5-inch screen integrated in the instrument cluster. Providing a wide range of vehicle, diagnostic and trip information,as well as fuel coaching and data logging.

Fuel coaching system
A real-time driving guidance tool displaying actions required to achieve optimized fuel economy operation with manual transmissions.

seats
Two variants of interior layout, 3-seater or 2-seater. High-quality textile upholstery. Ergonomically designed driver’s seat with integrated headrest. Air suspended seat with lumbar support and armrest with height adjustment of 80mm and fore-aft adjustment of 190mm.
