Your Holden Astra Owner’s Handbook

This Owner's Manual provides you with all the necessary information to enable you to drive your vehicle safely and efficiently. Make sure your passengers are aware of the possible risk of accident and injury which may result from improper use of the vehicle.

Holden Astra Initial drive information

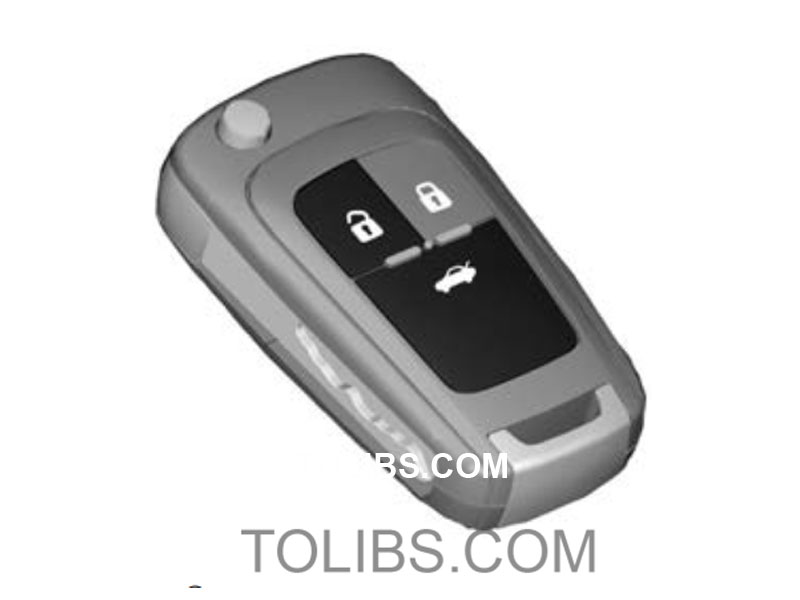

Vehicle unlocking

Press Unlock Buttpn to unlock the doors, tailgate and fuel filler flap. Open the doors by pulling the handles.

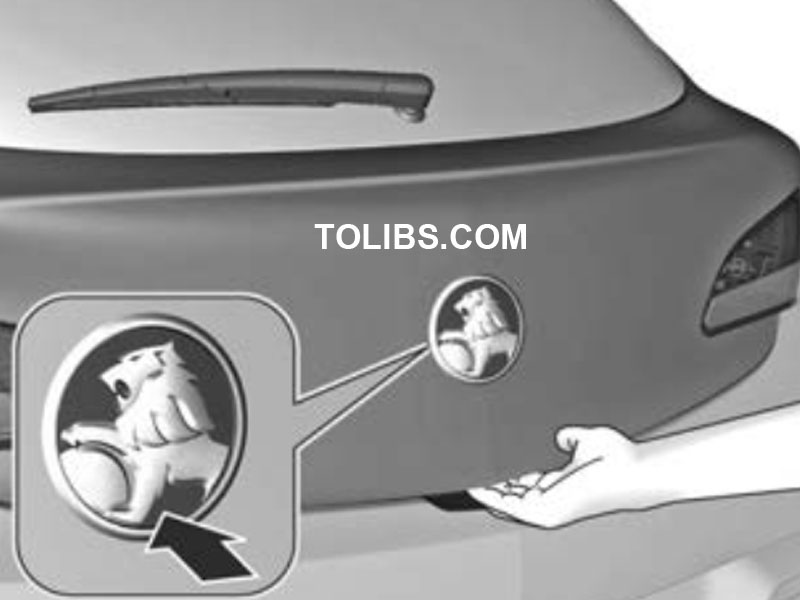

Open the tailgate

To open the tailgate, push the brand emblem at the bottom half.
If equipped, press Door Opne Icon on remote control to unlock and open the tailgate. The doors remain locked.

• Radio remote control -> 20, Central
• locking system -> 21, Load
• compartment -> 23.

Seat adjustment
Seat positioning

Pull handle, slide seat, release handle. Try to move the seat back and forth to ensure that the seat is locked in place.

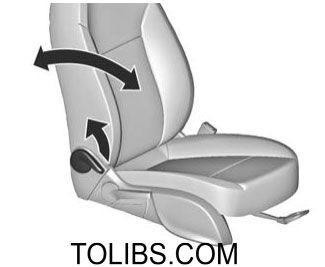

Seat backrests

Pull lever, adjust inclination and release lever. Allow the seat to engage audibly.

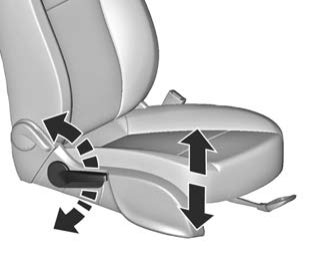

Seat height

Lever pumping motion
up = seat higher
down = seat lower

Seat inclination

Lever pumping motion
up = front end higher
down = front end lower

Height adjustment

Press and hold button, adjust height, release button to engage.

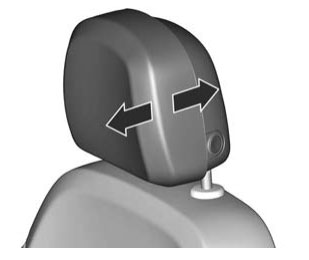

Horizontal adjustment

To adjust horizontally, pull the lower front portion of the head restraint forwards. It engages in several positions. To return to its rearmost position, pull fully forwards and release.

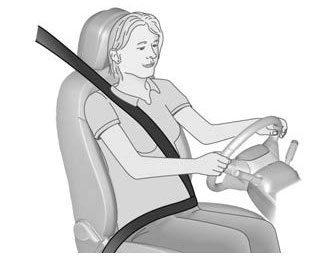

Seat belt

Pull out the seat belt and engage in belt buckle. The seat belt must not be twisted and must fit close against the body. The backrest must not be tilted back too far (maximum approx. 25 °). To release belt, press red button on belt buckle.

Mirror adjustment

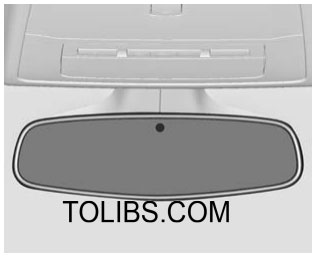

Interior mirror

Dazzle from following vehicles at night is automatically reduced.

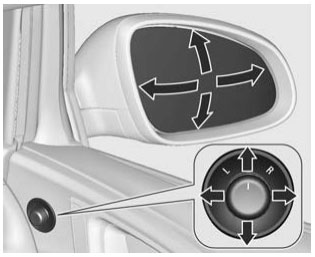

Exterior mirrors

Select the relevant exterior mirror and adjust it.

• Convex exterior mirrors => 26,
• Electric adjustment => 26, Folding
• exterior mirrors => 26, Heated
• exterior mirrors => 26.

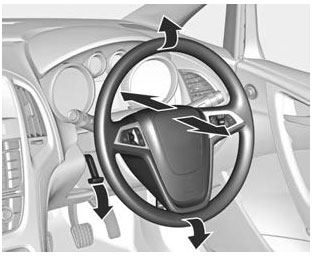

Steering wheel adjustment

Unlock the lever, adjust the steering wheel, then engage the lever and ensure it is fully locked. Do not adjust the steering wheel unless the vehicle is stationary and the steering wheel lock has been released.

High beam assist

The high beam assist is activated by pushing the indicator lever twice with a speed above 40 km/h. The green control indicator illuminates continuously when the assist is activated, the blue illuminates when high beam is on. To deacivate the high beam assist push indicator lever once.
